# Creating Static Collisions

### Prerequisite Knowledge

* Basic Blender skills ([This is a great place to start](https://www.youtube.com/playlist?list=PLjEaoINr3zgFX8ZsChQVQsuDSjEqdWMAD))
* Know how to either stream assets in a FiveM server or load mods into the base-game

### What you will need

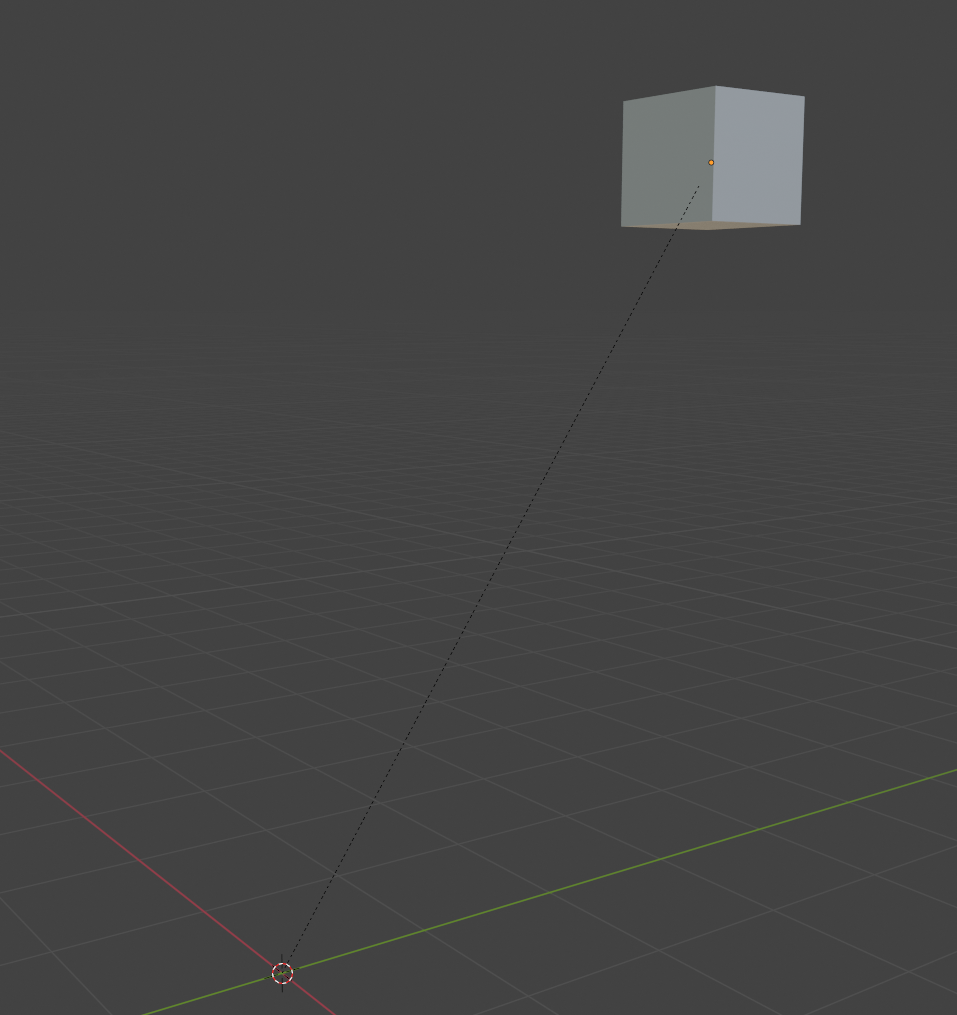

* A mesh located at the world location (where you want the collision to be)

### Converting to a Static Collision

The first thing to do is apply location transforms on your object(s). Select all the objects and press CTRL + A and select 'Location'.

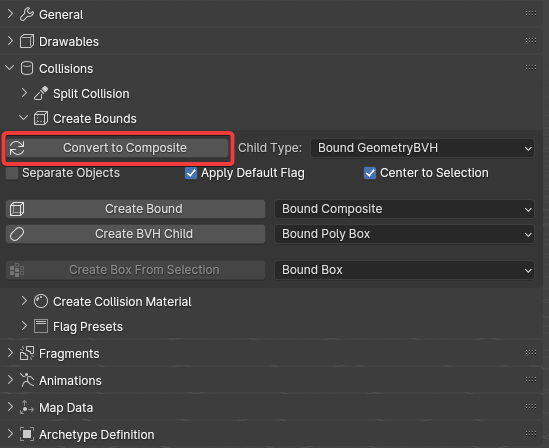

Next go to Sollumz Tools > Collisions > Create Bounds and select your object(s) and click 'Convert to Composite'.

![](/files/6rr16NDpFFTFcRaMBuLt)

Ensure that the Bound Composite and Bound GeometryBVH empties are located at 0, 0, 0.

Next, Center the origins of your object(s), go to Object > Set Origin > Origin to Geometry.

<figure><img src="/files/q5MqWTc34gQd23uIfDPp" alt=""><figcaption><p>Example Hierarchy</p></figcaption></figure>

It should now look something like this.

![](/files/OCWJbbPl2IupdDa5P2Dq)

Last step is to rename the 'Bound Composite' empty to your .ybn file name.

### Additional tips

Using Primitive shapes such as, 'Bound Poly Box', 'Bound Poly Capsule', 'Bound Poly Sphere' should be used for majority of your collisions, unless the mesh is a complex shape and cannot be made up of multiple primitive shapes. This is because it is more performance friendly and reduces unnecessary asset size.


---
