  1. Documentation
  2. Fragments (.yft)

Collision Physics

PreviousBone PhysicsNextProp Setup

Was this helpful?

Each separable part of a Fragment must have an associated collision object in order for physics to work. This means each bone with Use Physics enabled should also have a collision object linked to it.

Rigging Collisions

You link collisions to bones the same way you link Drawable Models to bones as described in .

Setting Mass

Each collision object under a Fragment also has a Physics subpanel where you can define its mass.

Auto Mass Tool

There is also a tool for automatically calculating mass based on the collision material's density and the object's volume. Navigate to Sollumz Tools > Fragment > Set Mass. There you will find the Calculate Collision Mass tool.

In order for this tool to work, the collision object must have a collision material added.

Volume and Inertia

Volume and Inertia are essential physics properties for collisions. You can find these options under Object Properties > Sollumz.

Typically when creating completely custom collisions, you would auto-calculate these values during export, as calculating these involves a lot of math relating to the dimensions and shape of your collisions.

📄
🚙
Drawables (.ydr) > Rigging

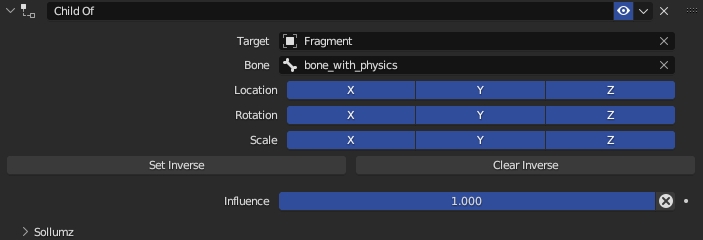

Collision object linked to bone via a Child Of constraint
Object Properties > Sollumz > Physics

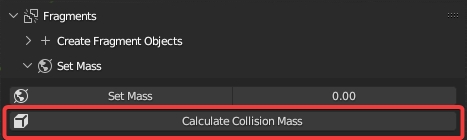

Sollumz Tools > Fragment > Set Mass

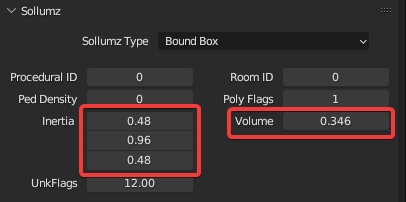

Object Properties > Sollumz

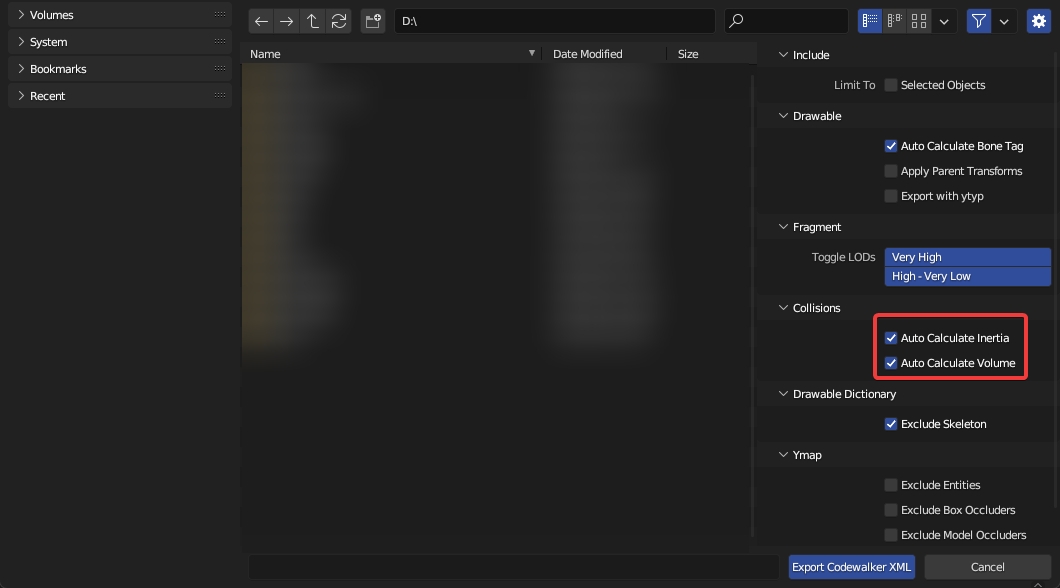

Export Codewalker XML > Collisions
