🚙Fragments (.yft)

Fragments are objects that contain separable parts and react to physics. These objects are typically used in breakable props (i.e. street lamps) and vehicles. The file contains a Drawable and a Composite (collision), and sometimes multiple of each if there is a destroyed variant such as in gas tanks. However, Sollumz does not currently support editing destroyed variants of Fragments.

It's recommended that you read the documentation page on Drawables and collisions first, as Fragments are made up of these objects.

🌐Drawables (.ydr)💥Collisions (.ybn)

File Layout

Fragment
    Drawable
    DrawableDamaged (sometimes)
    Physics
        Composite
        CompositeDamaged (sometimes)
        PhysicsGroups
        PhysicsChildren
    VehicleGlassWindows
    GlassWindows (currently not supported)
    Lights

The file layout for Fragments is quite complex, even with the simplified layout shown above (if you wish to see the full file layout, just open a yft.xml). However, you don't need to understand how the file works internally to understand how it works in Sollumz.

The Fragment contains a main Drawable as well as a Physics section which contains the collisions and physics data. PhysicsGroups contains groups of physics data where each group is linked to a bone. This is essentially the physics properties for each bone. PhysicsChildren contains physics data for each collision (i.e. mass, inertia). Each physics child belongs to a PhysicsGroup, and multiple children can belong to a single group.

You'll also notice there is a VehicleGlassWindows section. As the name implies, this is where data relating to vehicle windows are stored. Non-vehicle fragments can also have GlassWindows, but that is not currently supported by Sollumz.

Finally, there are Lights, which, just like Drawables, contain any lights that the Fragment might have (only ever used in prop Fragments).

Blender Hierarchy

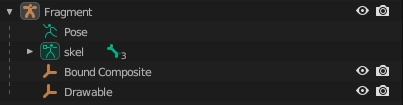

Example Fragment object
