Light IDs

PreviousVehicle WindowsNextPaint Colors

Was this helpful?

Any mesh with vehicle_lightsemissive shaders will appear always emissive in-game unless light IDs are assigned. Assigning light IDs allow you to make some faces only appear emissive under certain conditions (i.e. headlights on/off). Sollumz makes assigning light IDs easy.

With a headlight object selected, enter Edit Mode in Face Selection mode and navigate to the Sollumz Tools > Fragment > Vehicle Light IDs panel.

Select the faces of the left headlight that use the emissive shader, then set its light ID to headlight_l.

Notice now that if you unselect those faces, and select the headlight_l light ID, it will select those faces you just assigned.

📄
🚙

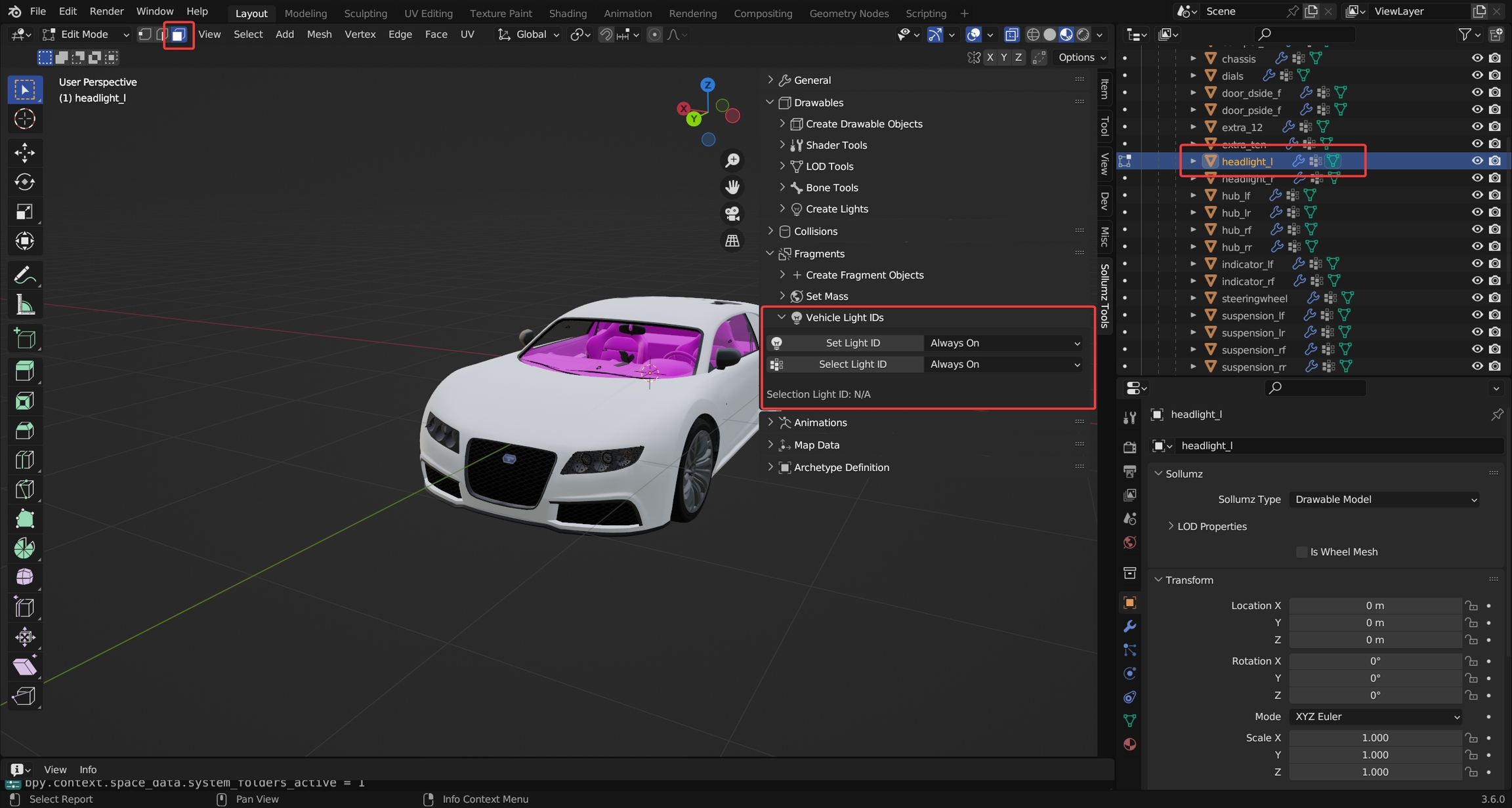

Sollumz Tools > Fragment > Vehicle Light IDs

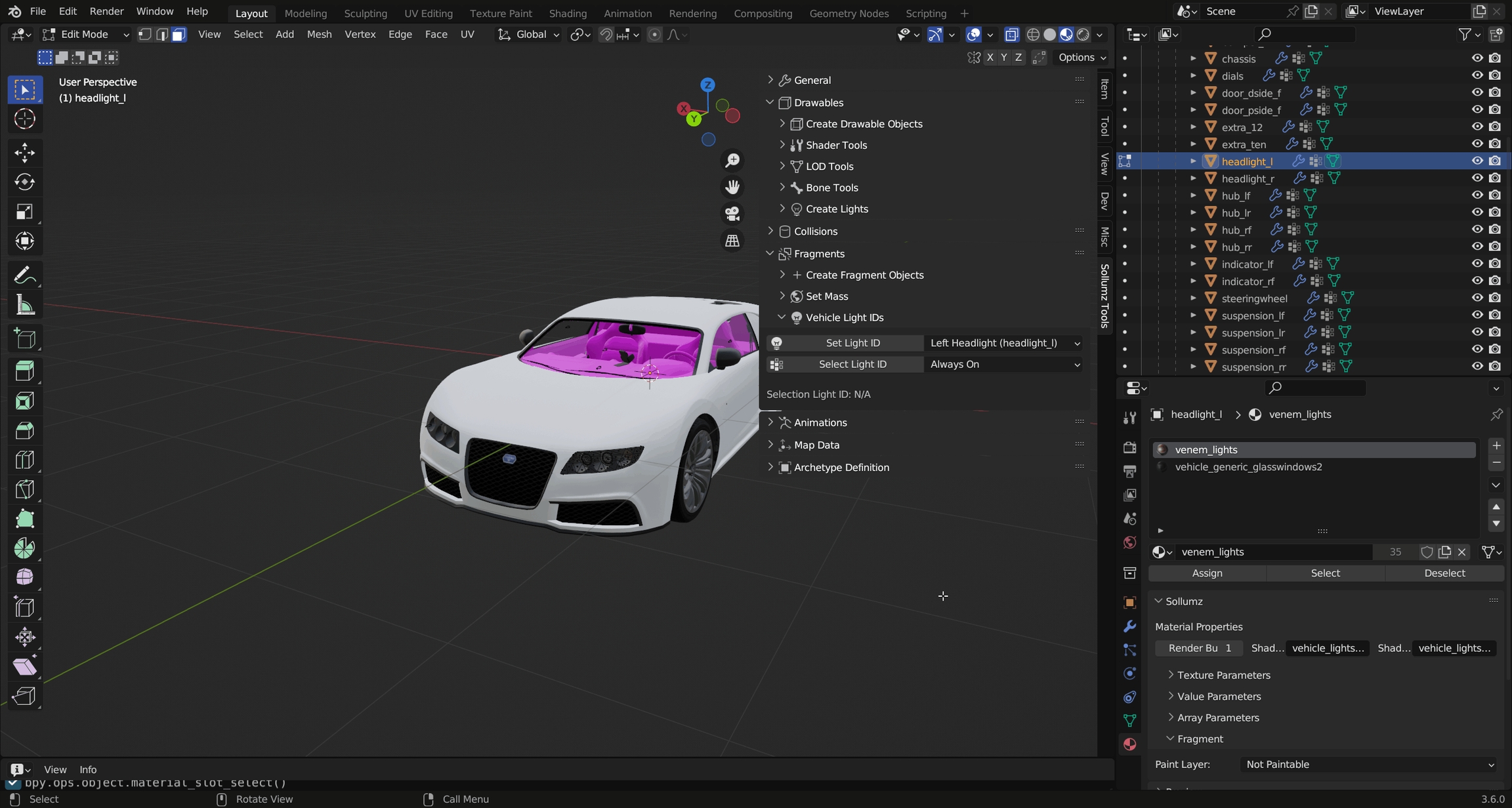

Setting left headlight light IDs

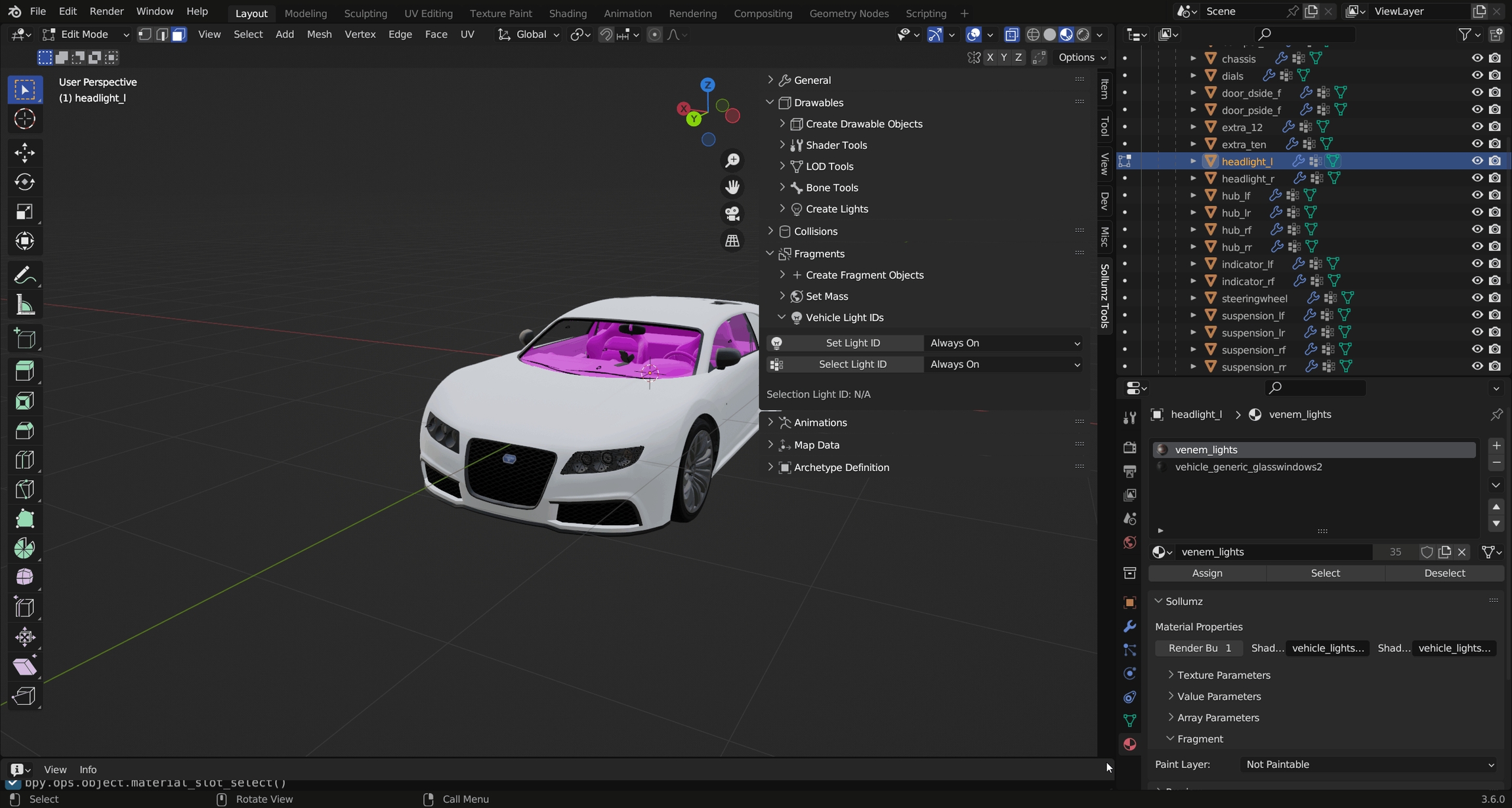

Selecting light IDs
