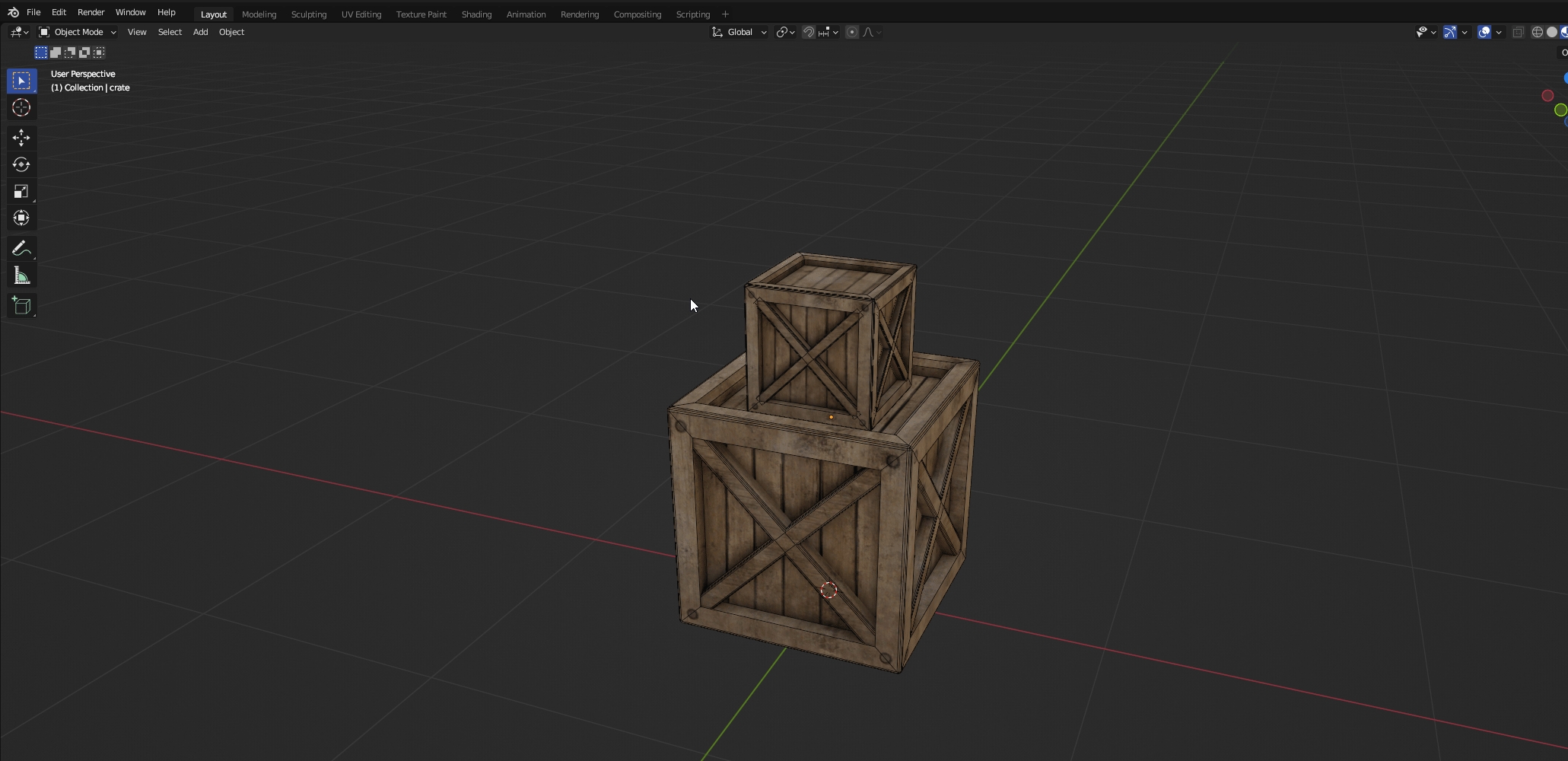

# Creating Static Meshes Game meshes are stored in the [Drawable (.ydr)](https://github.com/Sollumz/wiki/blob/main/documentation/drawables.ydr) file format. Creating Drawables in Sollumz is very simple. This tutorial will walk you through step-by-step. ### Prerequisite Knowledge * Basic Blender skills ([This is a great place to start](https://www.youtube.com/playlist?list=PLjEaoINr3zgFX8ZsChQVQsuDSjEqdWMAD)) * Know how to create YMAPs to place objects in CodeWalker ([Here's a basic tutorial](https://www.youtube.com/watch?v=W0YPabgu8oo)) * Know how to either stream assets in a FiveM server or load mods into the base-game ### What you will need * A UV-mapped 3D mesh of your choice * Textures for the mesh You can also follow along with the tutorial by using the assets below: {% file src="" %} ### Converting to a Drawable The first thing to do is convert your object(s) to a Drawable. Select all the objects and click `Convert to Drawable` in `Sollumz Tools > Drawable > Create Drawable Objects`.

You'll notice that an empty object gets created called "Drawable" and the objects that were selected are now Drawable models.

If you navigate to `Mesh Properties > Sollumz LODs` you'll also notice that the active mesh is automatically assigned to the "High" LOD level. This panel is where you can assign other meshes as LODs. More info on that [here](https://docs.sollumz.org/2.6/documentation/drawables.ydr/level-of-detail-lods-editing). For the sake of this tutorial, we will only be setting the High LOD level.

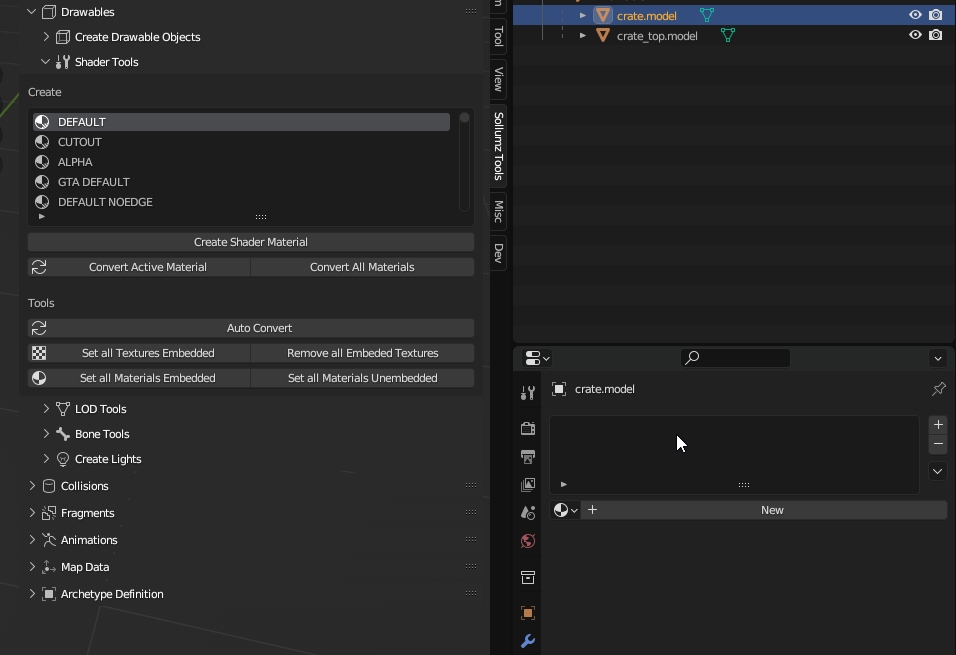

### Adding Materials Next, we need to add materials to the Drawable Models. With one of the Drawable Models selected, open the `Sollumz Tools > Drawable > Shader Tools` panel. For this tutorial, I will use the "NORMAL" shader which allows us to specify a base color and a normal map. Search for the "NORMAL" shader and click `Create Shader Material`.

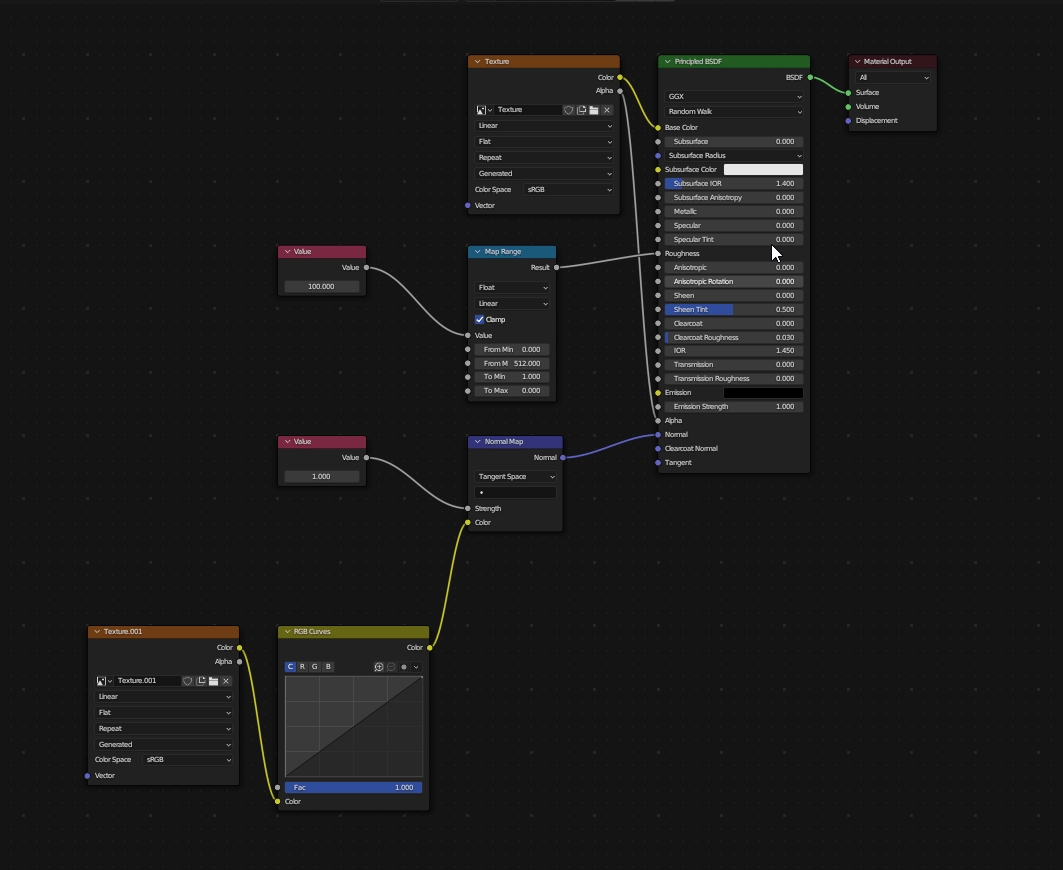

With the newly added material selected, head to the shading tab and assign your textures.

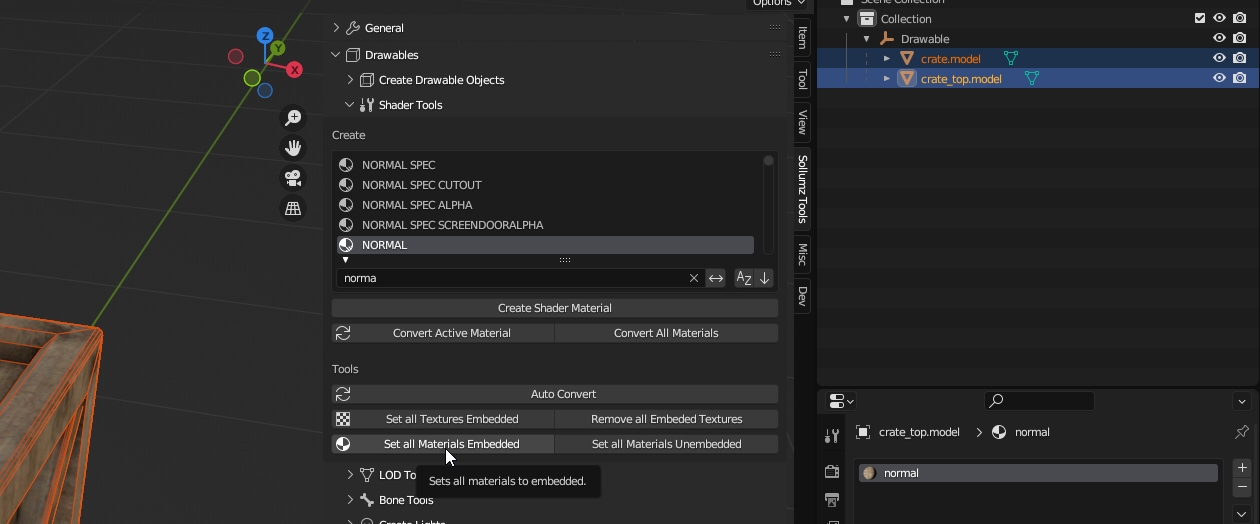

Repeat the process for any other Drawable Models. In my case, I am just going to use the same material for the "crate\_top" Drawable Model. ### Embedding Textures Lastly, we need to set the textures as embedded. This will embed the textures into the YDR file, so we don't have to create a texture dictionary file (.ytd). With both objects selected, navigate to `Sollumz Tools > Drawable > Shader Tools` and click `Set all Materials Embedded.`

Sollumz Tools > Drawable > Shader Tools > Set All Materials Embedded

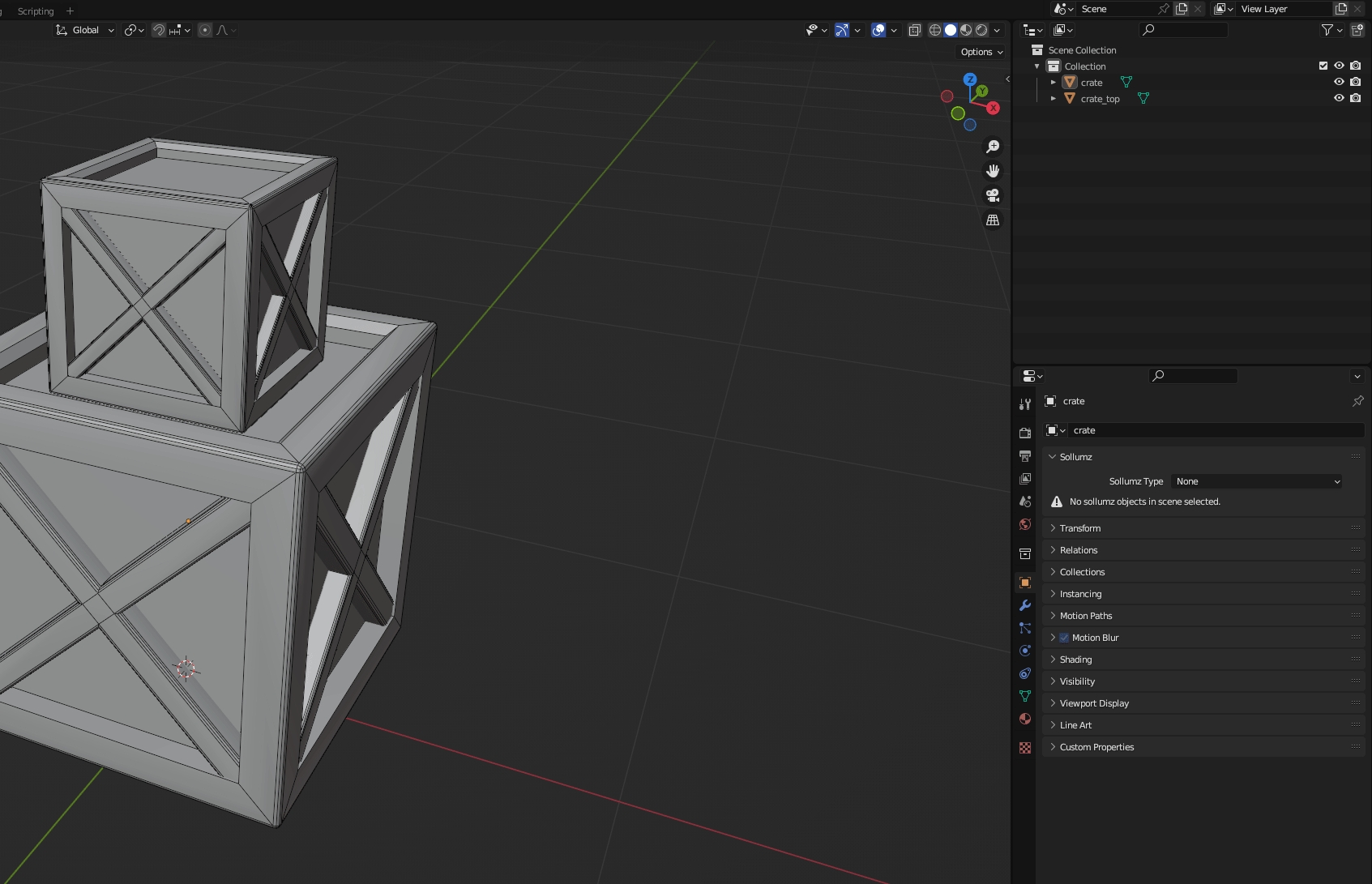

### Exporting Before exporting I'm going to rename my Drawable to something more descriptive like "crate". Once you're happy with everything, export the Drawable by clicking File > Export > Codewalker XML. I am going to also enable `Export with ytyp`. This will automatically generate a YTYP with the Drawable we created already defined.

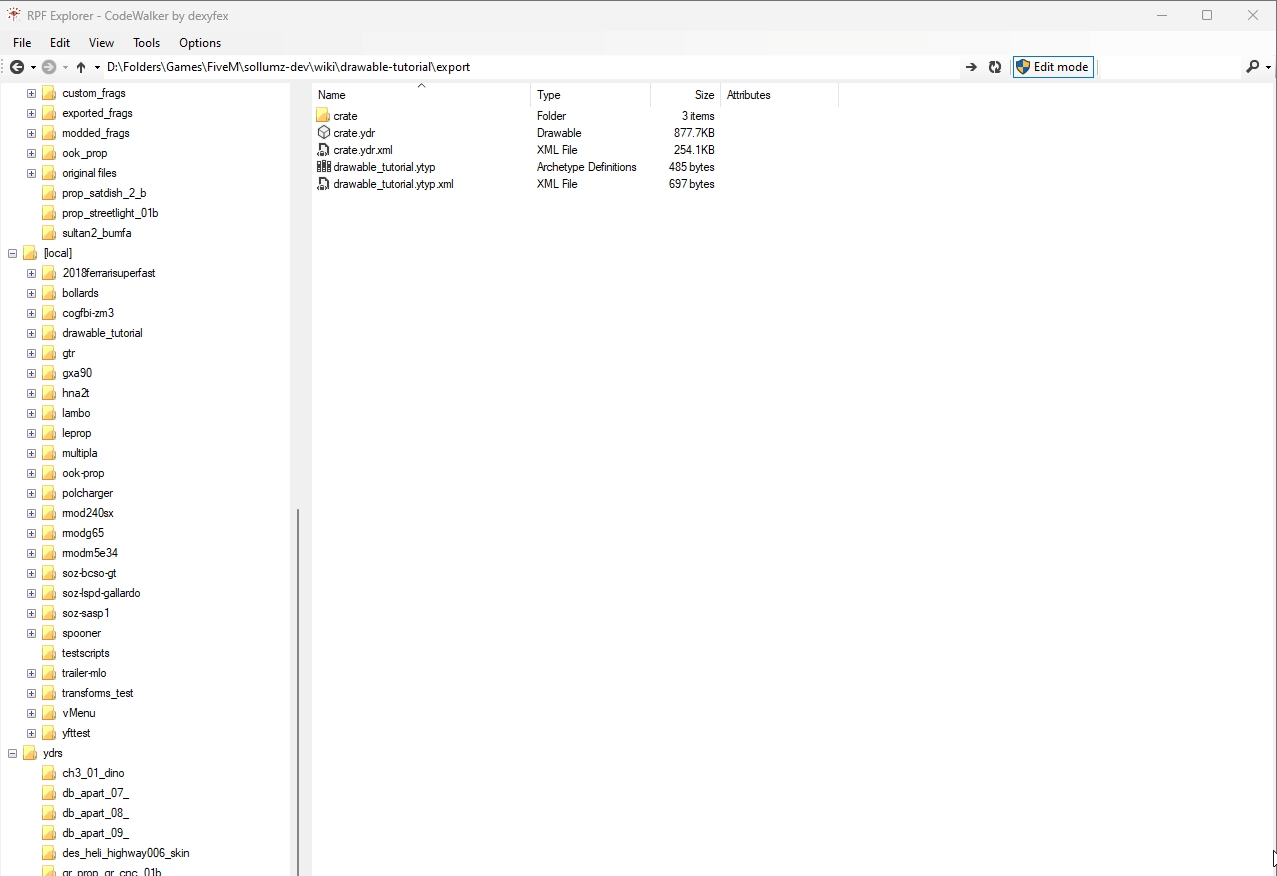

{% hint style="info" %} You can also import/export via the Sollumz pie menu by pressing V and choosing "Export CodeWalker XML" {% endhint %} Your Drawable is now ready to be loaded into the game! ### Getting Files Ready to Stream Convert the ydr.xml and ytyp.xml using CodeWalker.

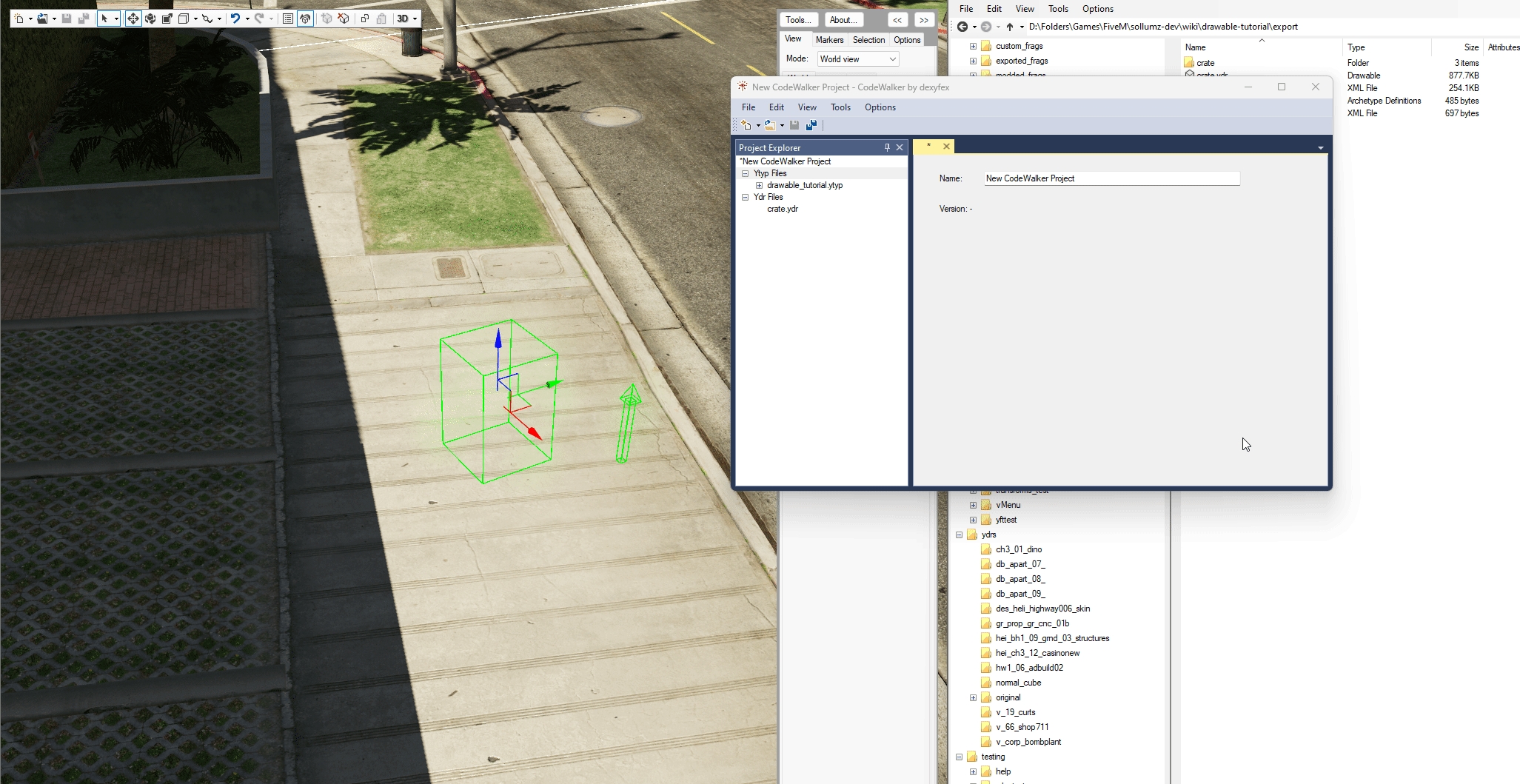

Open the converted files in a CodeWalker project.

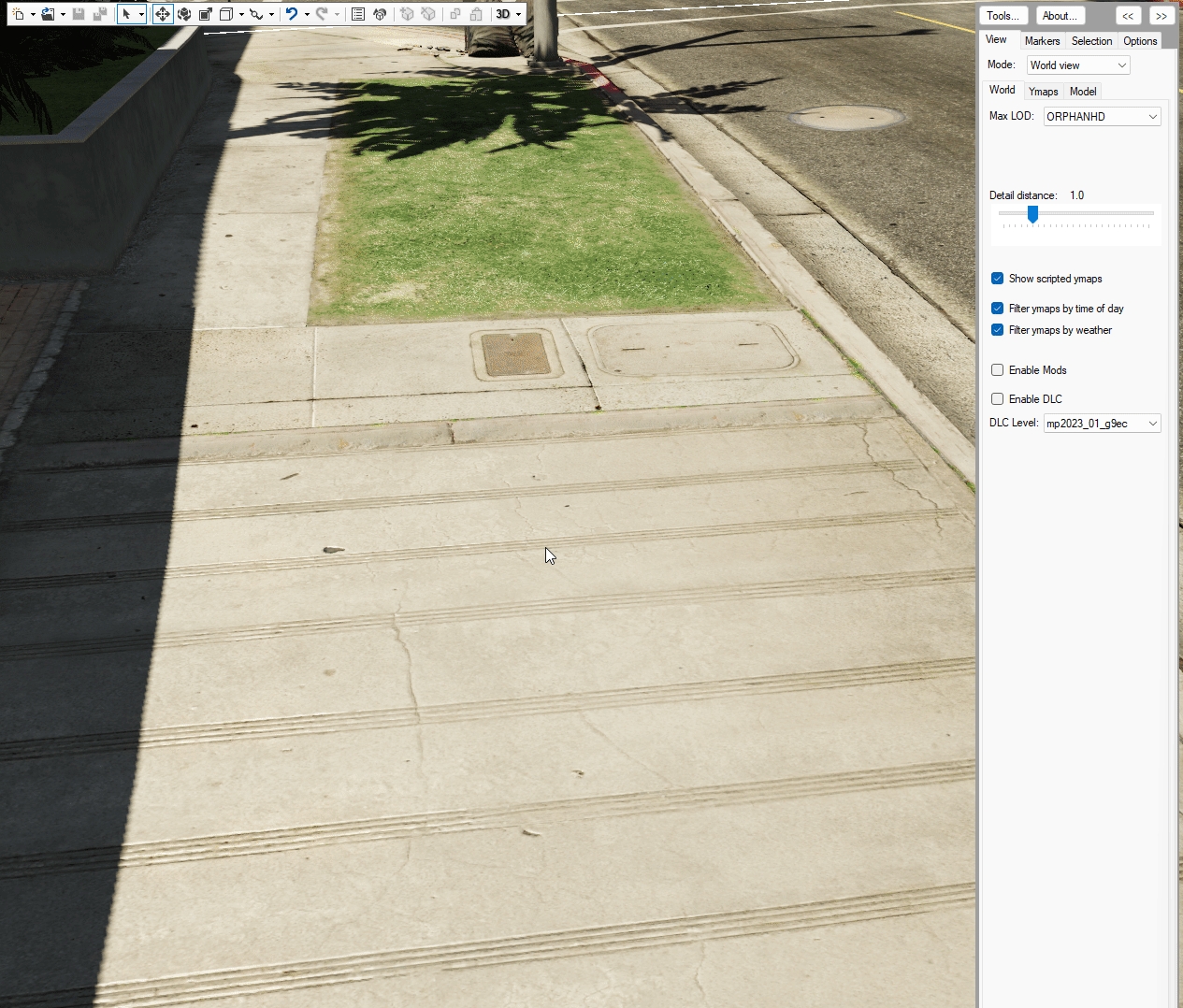

Add a YMAP to the project and add the newly created Drawable as an entity.

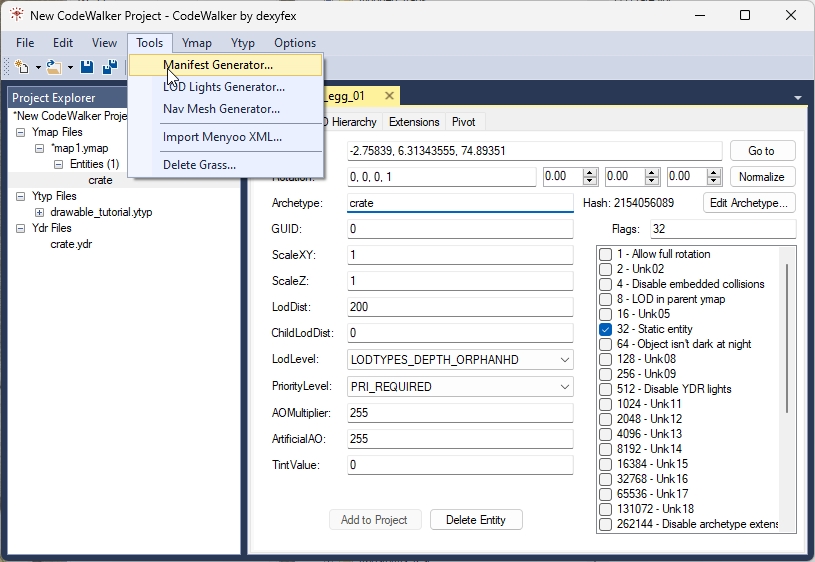

Position the entity to your liking, then export the YMAP. {% hint style="warning" %} Don't forget to generate \_manifest.ymf for your project! {% endhint %}

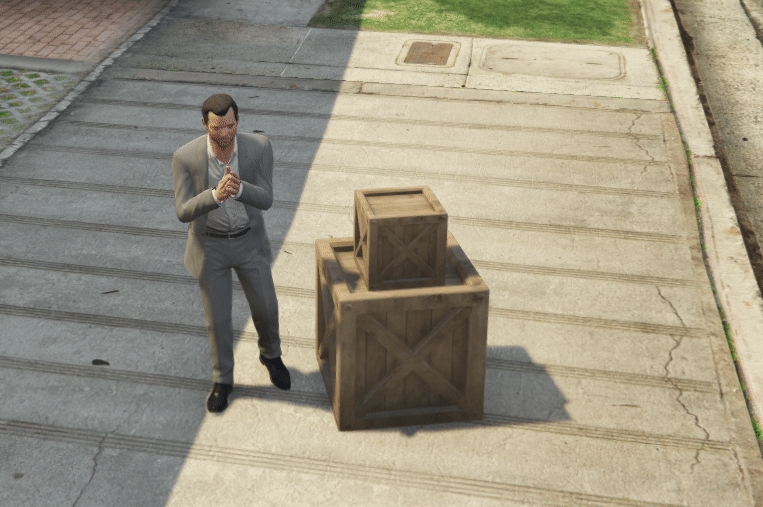

Now, load your YDR, YTYP, YMAP, and \_manifest.ymf into either an RPF or the stream folder of your FiveM resource. ### Test In-Game That's it! Load into the game and check out your creation!

{% hint style="info" %} Note that your character will not collide with the Drawable as we have not created collisions for it. See [Creating Static Collisions](https://docs.sollumz.org/2.6/tutorials/creating-static-collisions) to learn how to create collisions. {% endhint %}
