> For the complete documentation index, see [llms.txt](https://docs.sollumz.org/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.sollumz.org/2.6/documentation/fragments.yft/vehicle-setup/vehicle-windows.md). # Vehicle Windows Vehicle windows are defined in the physics properties of the window collision. See `window_lf.col` in `adder.yft` for example.

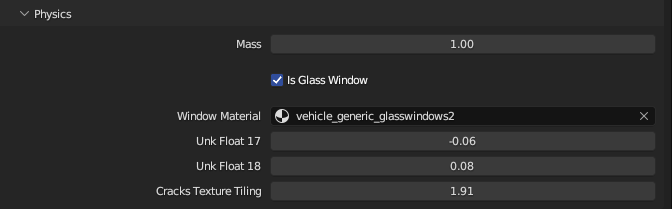

window_lf.col | Object Properties > Physics

Enabling `Is Glass Window` will cause the window properties to appear. The only property you should have to change here is the `Window Material`. This is the material that the corresponding window mesh uses. Looking at the `window_lf` mesh materials, we see that it uses two `vehicle_generic_glasswindows2` materials.

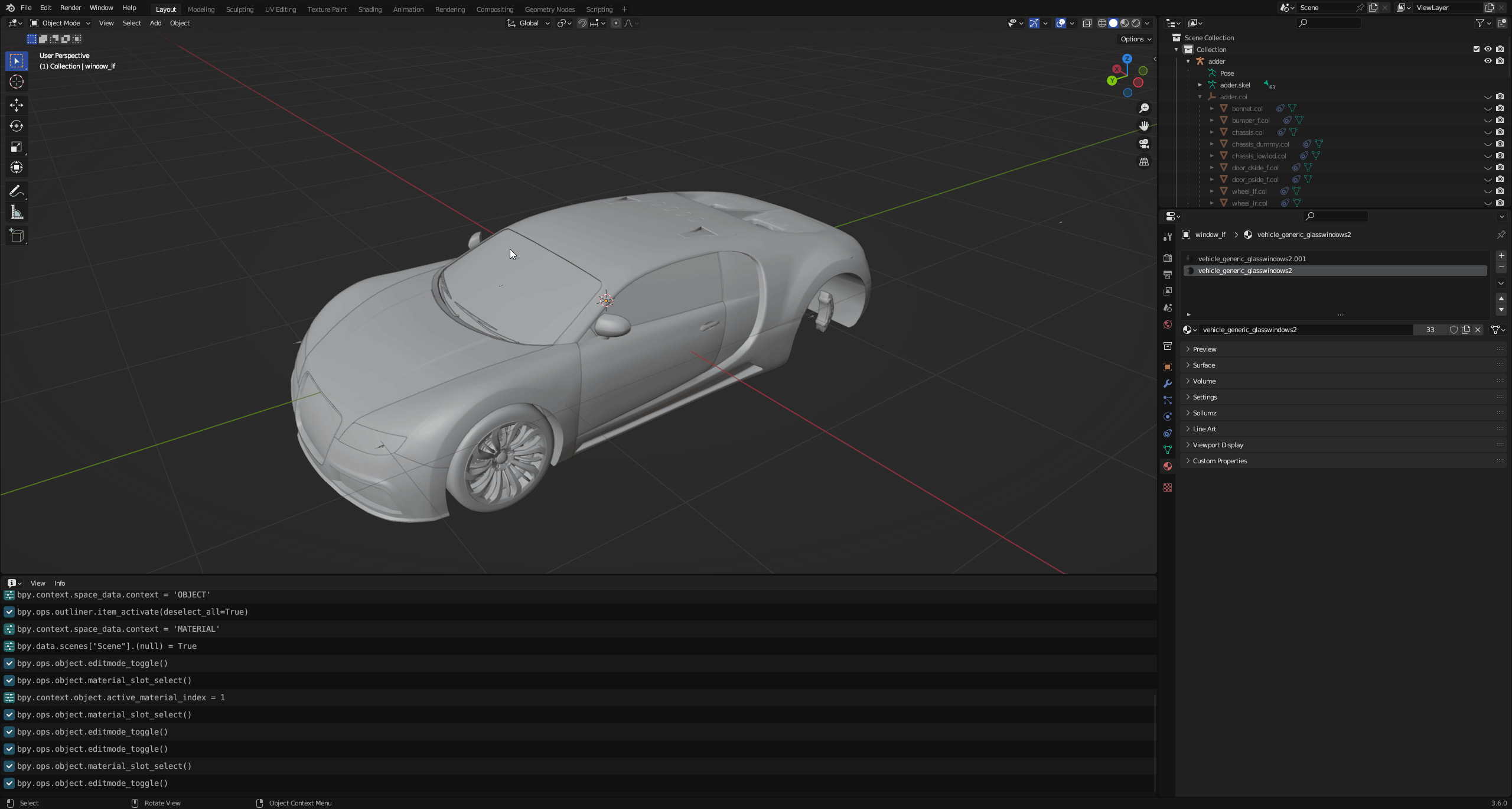

This is because one material represents the inner glass and the other represents the outer glass. Go into Edit Mode and select the vertices of each material to see which one represents the outer glass. In this case, it's the material without the ".001" so that's the one that the glass window should reference.

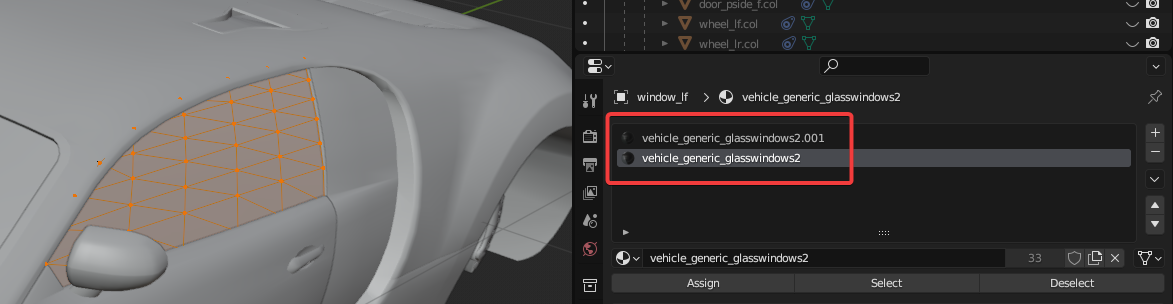

Determining which material is the outer glass material

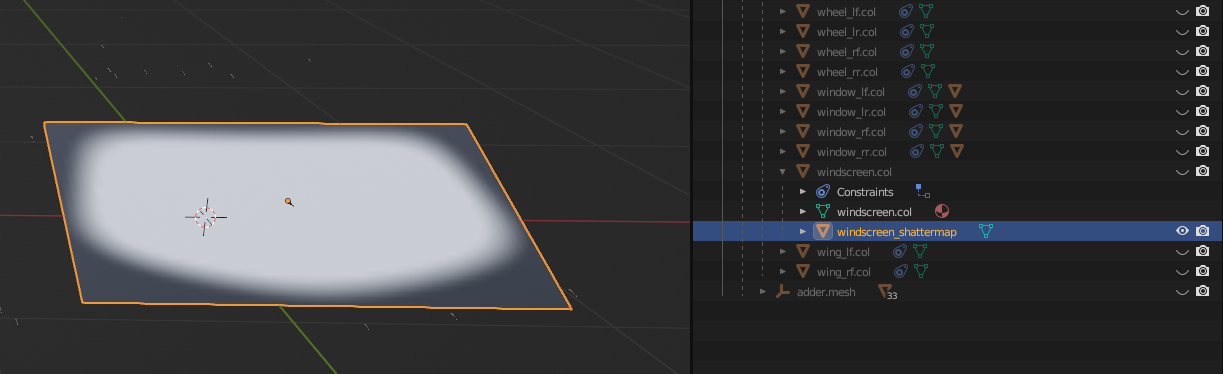

That's all that is needed for working vehicle windows! ### Shattermaps You will notice that all vanilla vehicles have "shattermaps", which is an image that defines the border of the glass-breaking pattern. These aren't 100% necessary for working vehicle windows but will result in better-looking glass shatter patterns. In Sollumz, shattermaps are represented as planes with a single texture. For example, `adder.yft` has an object called `windscreen_shattermap` which is parented to `windscreen.col`.

These are always low-res bitmap greyscale textures. Currently, Sollumz has no tools for creating shattermaps, so your best bet is to copy shattermaps from vanilla files and work off of those. --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation by asking a question. Perform an HTTP GET request on the following URL with the `ask` and `goal` query parameters: ``` GET https://docs.sollumz.org/2.6/documentation/fragments.yft/vehicle-setup/vehicle-windows.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is what the user is ultimately trying to achieve, the reason they need the answer. Sharing it helps GitBook give you a better, more relevant answer. A goal is most helpful when it describes the outcome the user wants rather than restating the question. For example, with `ask=how do I create an API token`, a goal like `automate deployments from our CI pipeline` lets GitBook tailor the answer to that use case. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
