# Collision Physics

Each separable part of a Fragment must have an associated collision object in order for physics to work. This means each bone with `Use Physics` enabled should also have a collision object linked to it.

### Rigging Collisions

You link collisions to bones the same way you link Drawable Models to bones as described in [Drawables (.ydr) > Rigging](https://docs.sollumz.org/2.6/drawables.ydr/rigging#linking-bones-to-drawable-models).

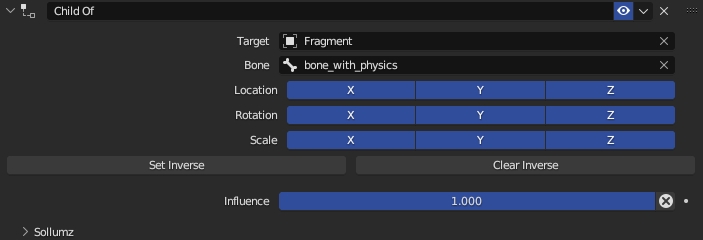

<div align="left"><figure><img src="https://content.gitbook.com/content/ehtaz4TEffW4ndJvLWLm/blobs/JlZ87wkBxflvkEw57F1w/image.png" alt=""><figcaption><p>Collision object linked to bone via a Child Of constraint</p></figcaption></figure></div>

### Setting Mass

Each collision object under a Fragment also has a Physics subpanel where you can define its mass.

<div align="left"><figure><img src="https://content.gitbook.com/content/ehtaz4TEffW4ndJvLWLm/blobs/SZvijoWZSbf5gFJzmeMm/image.png" alt=""><figcaption><p>Object Properties > Sollumz > Physics</p></figcaption></figure></div>

#### Auto Mass Tool

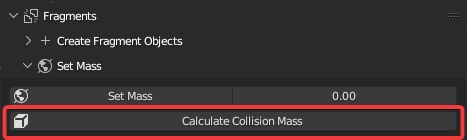

There is also a tool for automatically calculating mass based on the collision material's density and the object's volume. Navigate to `Sollumz Tools > Fragment > Set Mass`. There you will find the `Calculate Collision Mass tool`.

<div align="left"><figure><img src="https://content.gitbook.com/content/ehtaz4TEffW4ndJvLWLm/blobs/HkFTqg6uTP5fYzUTd4mF/image.png" alt=""><figcaption><p>Sollumz Tools > Fragment > Set Mass</p></figcaption></figure></div>

In order for this tool to work, the collision object must have a collision material added.

### Volume and Inertia

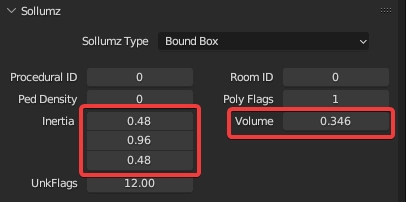

Volume and Inertia are essential physics properties for collisions. You can find these options under `Object Properties > Sollumz`.

<div align="left"><figure><img src="https://content.gitbook.com/content/ehtaz4TEffW4ndJvLWLm/blobs/0yo9XuYeAWdfFZcAP1FZ/image.png" alt=""><figcaption><p>Object Properties > Sollumz</p></figcaption></figure></div>

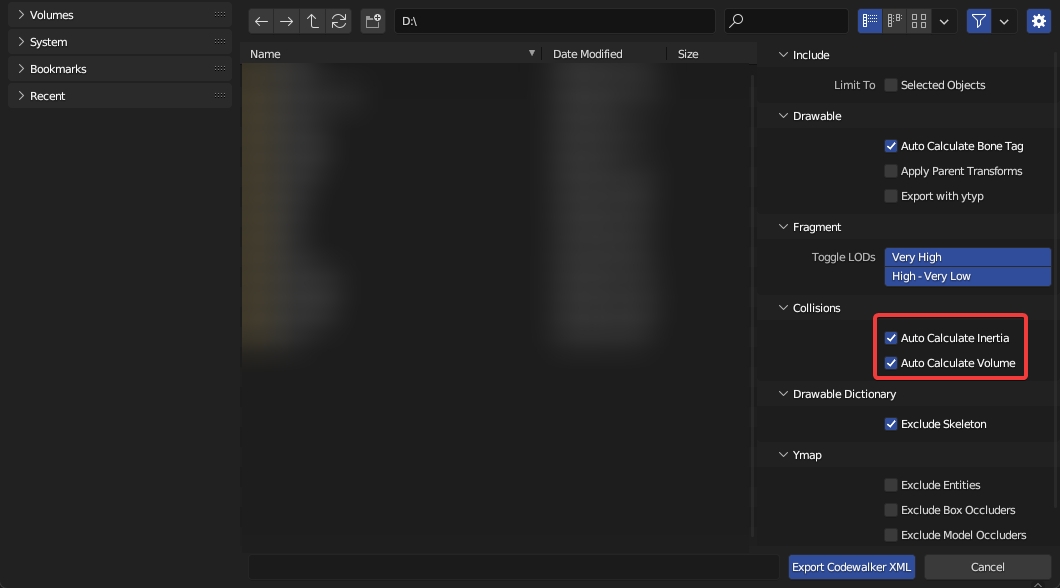

Typically when creating completely custom collisions, you would auto-calculate these values during export, as calculating these involves a lot of math relating to the dimensions and shape of your collisions.

<div align="left"><figure><img src="https://content.gitbook.com/content/ehtaz4TEffW4ndJvLWLm/blobs/RrlKVUHY08zS00YPdidH/image.png" alt=""><figcaption><p>Export Codewalker XML > Collisions</p></figcaption></figure></div>
