The Drawable Dictionary is a container that holds a collection of drawables. Its primary use is for storing LOD models, ped components, ped props, mesh minimaps and instanced props.
It is recommended that you read the Drawable documentation page before creating a Drawable Dictionary, as it consists of drawables.
Drawable Dictionary
Drawable#1
ShaderGroup
Skeleton (sometimes, mostly seen on ped components)
DrawableModelsHigh
DrawableModelsMed
…
Drawable#2
Drawable#3
Drawable#4
Drawable#5
…
For the hierarchy, several drawables exist as regular game-ready assets, but all of them share one parent drawable dictionary object.
Blender Hierarchy
In Blender, Drawable Dictionaries comprises a parent object and one or more drawable objects in its hierarchy.
Limitation
Some features of Drawable objects cannot be inherited by Drawable Dictionaries. For example, the embedded collision cannot function when the drawable is in a drawable dictionary.
Furthermore, CodeWalker cannot identify the real name of a drawable in drawable dictionaries unless a nametable with resolved names is loaded. Thus, it is recommended to create a nametable whenever utilizing a drawable dictionary in your project to facilitate your own and others' modding processes.
Archetype Definition
A Drawable Dictionary does not have its own archetype definition.
When creating the archetype definition for a drawable in a drawable dictionary, it is necessary to fill the correct name of your drawable dictionary in the "Drawable Dictionary" blank to ensure it workds within the game.
For instance, if we have the drawable dictionary my_ydd and the drawable my_ydr in the scene. Then you should fill in "Drawable Dictionary" in the archetype as shown in the picture below:
If you use the "Auto-Create From Selected" function, the "Drawable Dictionary" will be filled in automatically.
Example Drawable Dictionay object
Fill the "Drawable Dictionary" with the name of your drawable dictionary
Welcome
Thank you for using Sollumz, the only GTA V modding suite for Blender!
A basic understanding of modding in GTA V including using CodeWalker.
Requirements
Blender 4.0 or later -
Latest version of CodeWalker found in #releases channel.
Reporting Bugs and Making Feature Requests
If you think you've found a bug or you wish to request a feature, please use the . Be sure you extensively troubleshoot the issue first to ensure a bug is actually present.
Jump right in and create your first game asset by following one of our tutorials! We recommended you start with these tutorials first, as the other tutorials build off knowledge from these tutorials.
It's also highly recommended that you check out the documentation section. There you will find detailed information about each file type and how it is represented in Blender.
Props are simply just entities or models that can be reused and placed multiple times to detail an area or scene.
Prerequisite Knowledge
Basic Blender skills
Know how to either stream assets in a FiveM resource or load singleplayer mods
What you will need
A model with textures prepared
You can follow this guide in the order below:
Creating Vehicles
In this crash course tutorial, you are going to learn how to create a vehicle using a vanilla GTAV vehicle as a base. A basic knowledge of RAGE engine is nice to see.
The example vehicle used in this article is adder.yft
adder.yft
Before creating a new vehicle, make sure you have read the Vehicle Setup pages in Fragment documentation.
Contents
Positioning Bones
This step is needed when you are creating a fully custom vehicle. If this is an edit of an existing car, skip this step and go to next one.
Bones can be easily moved in Edit mode. To move them:
Switch to Solid Mode
Toggle X-Ray
Choose a bone you want to move
Select it in 3D View
Click on Move icon
Move the bone using gizmo.
Exporting
In the Export Codewalker XML > Fragment panel, you will find the two options, depending of your edits done prior in Blender.
Export settings with two options marked
First option - Auto Calculate Bonetags in Drawable is doing a bone number calculations. This option is needed to use when you have added a fresh new bone (i.e. a rear doors). The hardcoded bone tag value tells the game that specific bone has to be treated as rear doors. If you have not added any bones, do not select this.
Second option - Auto Calculate Inertia and Auto Calculate Volume has to be ticked if you have changed the shape of any collision mesh. Using this option provides a correct calculation for a physics engine. If you have not changed any collision shapes, do not select this.
LOD Assignment
All models rely on LOD meshes, which greatly reduces graphics demand of detailed models and improves overall performance.
if you have any other LOD meshes ready to be set up, copy their names to the proper LOD levels.
In order to render your mesh at any distance:
Go to Data tab.
Scroll to Sollumz LOD.
Copy the name from High LOD to Very High, Medium and Low.
Vehicle Setup
The example vehicle used in this article is adder.yft
adder.yft
Fragment Hierarchy
adder.yft Blender hierarchy
Contents
Installation
Blender 4.2+
Starting with Blender 4.2, Sollumz can now be installed as an extension from our repository .
First, add https://repo.sollumz.org/ as a remote repository by navigating to Preferences > Get Extensions > Repositories
Getting Help
If you have any questions, feel free to ask on our server. Please use the "" channel.
Before asking
Helpers are taking time out of their day to help you, so please make an effort to provide as much detail as possible in your post. See the pinned post "" for guidelines on how to ask questions.
Creating Static Collisions
Game Collisions are stored in the Static Collisions (.ybn) file format. Creating Collisions in Sollumz is very straight forwards.
Prerequisite Knowledge
Basic Blender skills ()
Setting Up Sollumz Shaders
Setting up proper Sollumz Shaders
For your textures and materials to work correctly inside of GTA V, you will need to use 'Sollumz Shaders'. these are simply materials that are set up correctly for use with GTA V assets.
To get started, within the Sollumz Tools found in the Toolbar, navigate to Drawables -> Shader Tools
Here you can find a list of all usable shaders within GTA V. you will quickly notice just how many shaders there are, and you might be intimidated by the amount, but around 80-90% of these shaders are not used frequently or at all for props.
Converting To Drawable
Game meshes are stored in the file format. Creating Drawables in Sollumz is very simple. This tutorial will walk you through step-by-step.
Converting to a Drawable
The first thing to do is convert your object(s) to a Drawable. Select all the objects and click Convert to Drawable in Sollumz Tools > Drawables > Create Drawable Objects.
Setting Up the Model and Materials
Importing a model
Without further ado, import a model (from a different game, modelled by yourself) to Blender. In this case, I am going to import the Super GT from GTAIV in .FBX format.
Fragments (.yft)
Fragments are objects that contain separable parts and react to physics. These objects are typically used in breakable props (i.e. street lamps) and vehicles. The file contains a Drawable and a Composite (collision), and sometimes multiple of each if there is a destroyed variant such as in gas tanks. However, Sollumz does not currently support editing destroyed variants of Fragments.
It's recommended that you read the documentation page on Drawables and collisions first, as Fragments are made up of these objects.
File Layout
Collision Physics
Each separable part of a Fragment must have an associated collision object in order for physics to work. This means each bone with Use Physics enabled should also have a collision object linked to it.
Rigging Collisions
You link collisions to bones the same way you link Drawable Models to bones as described in .
Vehicle Windows
Vehicle windows are defined in the physics properties of the window collision. See window_lf.col in adder.yft for example.
Enabling Is Glass Window will cause the window properties to appear. The only property you should have to change here is the Window Material. This is the material that the corresponding window mesh uses. Looking at the window_lf mesh materials, we see that it uses two vehicle_generic_glasswindows2 materials.
Light IDs
Any mesh with vehicle_lightsemissive shaders will appear always emissive in-game unless light IDs are assigned. Assigning light IDs allow you to make some faces only appear emissive under certain conditions (i.e. headlights on/off). Sollumz makes assigning light IDs easy.
With a headlight object selected, enter Edit Mode in Face Selection mode and navigate to the Sollumz Tools > Fragment > Vehicle Light IDs panel.
Select the faces of the left headlight that use the emissive shader, then set its light ID to headlight_l.
Paint Colors
Paint colors allow you to determine which materials represent the Primary color, Secondary color, Wheel color, Interior Trim color, and Dashboard color. To select the paint color for a material, navigate to Material Properties > Sollumz > Fragment.
By default it will be "Not Paintable", meaning the shader will not be affected by any paint color.
Export Settings
In the Export Codewalker XML > Fragment panel, you will find the Toggle LODs option.
This allows you to export just the hi YFT, just the non-hi YFT, or both at the same time.
Common sense is a must. Please check that you haven't done anything basic wrong, such as installation, misunderstanding about 3D formats, wrong Blender version, etc.
Make sure your question has not been asked before. Use the search function on our Discord server to find information about your problem.
If you have zero experience using Blender, learn the basics before asking anything.
Check FAQ section to look across the most asked questions.
Lights are well, lights that are embedded into .ydr or .yft objects. there is many different settings for these lights which can make it very tricky and confusing to get right.
Files not supported by Sollumz
Not every file type found in GTA is supported by Sollumz.
Ped YFTs (.yft) with articulated skeletons
Skeleton yfts (like mp_f_freemode_01.yft) are supported, as they just contain skeletons. However, some ped yfts also contain additional unknown physics data which is not handled by Sollumz. Here is a list of ped yfts that are not supported.
Cloth physics files, including .ydds that require .yld, are not yet supported by Sollumz.
>
+
>
Add Remote Repository
:
Next, search for "Sollumz". You will see two available versions to install:
Sollumz: The official release version, identical to what can be downloaded from the release page.
Sollumz (Development): The latest development build, which may be unstable. Use this version to test new features and updates, and provide feedback to help us improve.
Choose your preferred version and click Install:
Once installed, you can easily update to newer versions directly within Blender. You will see an Update button whenever new versions are available.
Know how to either stream assets in a FiveM server or load mods into the base-game
What you will need
A mesh located at the world location (where you want the collision to be)
Converting to a Static Collision
The first thing to do is apply location transforms on your object(s). Select all the objects and press CTRL + A and select 'Location'.

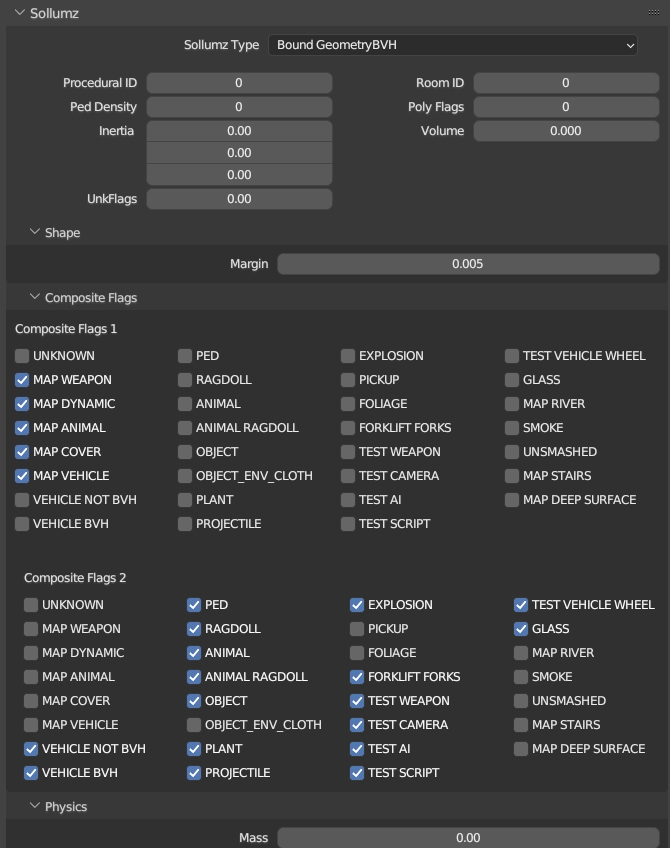

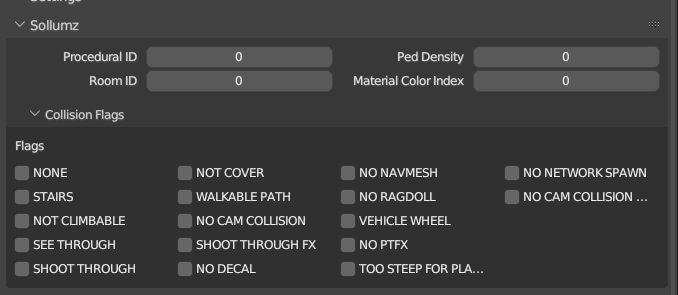

Next go to Sollumz Tools > Collisions > Create Bounds and select your object(s) and click 'Convert to Composite'.
Ensure that the Bound Composite and Bound GeometryBVH empties are located at 0, 0, 0.
Next, Center the origins of your object(s), go to Object > Set Origin > Origin to Geometry.
Example Hierarchy
It should now look something like this.
Last step is to rename the 'Bound Composite' empty to your .ybn file name.
Additional tips
Using Primitive shapes such as, 'Bound Poly Box', 'Bound Poly Capsule', 'Bound Poly Sphere' should be used for majority of your collisions, unless the mesh is a complex shape and cannot be made up of multiple primitive shapes. This is because it is more performance friendly and reduces unnecessary asset size.
Next, we will need to decide which shader is right for our asset. some key things to keep in mind when deciding which shader to use are:
Does my asset utilize a normal map?
Does my asset utilize a specular map?
Do my textures contain an alpha channel?
for this example, the asset uses a normal and specular map, but no alpha. so for this shader we will use "normal spec".
Creating the Shader
So now that we have decided which shader we will be using, we can now go ahead and create the shader. To do so, you can either press CTRL + F within the shader list and search for "normal_spec", or you can scroll manually.
Once you have located the shader, select it by clicking it. it should now be highlighted. next, select your prop model, and click the "Create Shader Material" button.
Sollumz Shader Tools Panel
Applying textures to your new shader
If you now navigate to the Material tab on the bottom right panel with your prop model selected, you will see your newly created shader.
Material Panel
another thing you will notice is the "Sollumz" tab within the Material tab. Within this Sollumz tab is where you will be controlling everything related to this specific shader.
If you expand the Texture Parameters panel, you will see the 3 different texture slots:
DiffuseSampler (Diffuse / Colour map)
BumpSampler (Normal / Bump map)
SpecSampler (Specular Map)
you can go ahead and click the folder icon on the right to open up the file explorer window and select the corresponding textures for each.
Once you apply each texture, ensure the BumpSampler Color Space is set to "non-Color" otherwise it will look incorrect within blender, but will be fine when you export.
Color Space
Sollumz Shader Tools Panel
You will notice in your Scene Collection top right, that your object has changed a little. It is now in the correct hierarchy / format for GTA V.
Drawable Hierarchy
If you navigate to Mesh Properties > Sollumz LODs with the drawable model selected, you'll also notice that the active mesh is automatically assigned to the "High" LOD level. This panel is where you can assign other meshes as LODs. More info on that here. For the sake of this tutorial, we will only be setting the High LOD level.
You can ditch that part if your vehicle was modelled in Blender.
Importing a .fbx format file with tutorial vehicle
As the import has finished, you will see an imported mesh.
Vehicle mesh after importing process
Assigning materials
The subject of consideration for this tutorial is the bonnet part. To assign a material, go to Material tab, click on Browse material button and select the material from the list. In this case, I have assigned a vehicle paint one to the outer part of the bonnet.
Choosing a vehicle paint material
The same is true for all the bonnet's materials.
The file layout for Fragments is quite complex, even with the simplified layout shown above (if you wish to see the full file layout, just open a yft.xml). However, you don't need to understand how the file works internally to understand how it works in Sollumz.
The Fragment contains a main Drawable as well as a Physics section which contains the collisions and physics data. PhysicsGroups contains groups of physics data where each group is linked to a bone. This is essentially the physics properties for each bone. PhysicsChildren contains physics data for each collision (i.e. mass, inertia). Each physics child belongs to a PhysicsGroup, and multiple children can belong to a single group.
You'll also notice there is a VehicleGlassWindows section. As the name implies, this is where data relating to vehicle windows are stored. Non-vehicle fragments can also have GlassWindows, but that is not currently supported by Sollumz.
Finally, there are Lights, which, just like Drawables, contain any lights that the Fragment might have (only ever used in prop Fragments).
Blender Hierarchy
Example Fragment object
The Blender hierarchy for Fragments is quite simple. The Fragment object itself is an armature with a Bound Composite and Drawable parented to it. The Fragment can also contain lights. Lights are typically stored in an empty object called "Lights", but can also be stored loosely in the Fragment or under the Drawable. It's up to you where to store the lights, as, during export, it will search all children (recursively) for lights. The hierarchy for the Bound Composite and Drawable is exactly the same.
Fragment
Drawable
DrawableDamaged (sometimes)
Physics
Composite
CompositeDamaged (sometimes)
PhysicsGroups
PhysicsChildren
VehicleGlassWindows
GlassWindows (currently not supported)
Lights
Each collision object under a Fragment also has a Physics subpanel where you can define its mass.
Object Properties > Sollumz > Physics
Auto Mass Tool
There is also a tool for automatically calculating mass based on the collision material's density and the object's volume. Navigate to Sollumz Tools > Fragment > Set Mass. There you will find the Calculate Collision Mass tool.
Sollumz Tools > Fragment > Set Mass
In order for this tool to work, the collision object must have a collision material added.
Volume and Inertia
Volume and Inertia are essential physics properties for collisions. You can find these options under Object Properties > Sollumz.
Object Properties > Sollumz
Typically when creating completely custom collisions, you would auto-calculate these values during export, as calculating these involves a lot of math relating to the dimensions and shape of your collisions.
Collision object linked to bone via a Child Of constraint
This is because one material represents the inner glass and the other represents the outer glass. Go into Edit Mode and select the vertices of each material to see which one represents the outer glass. In this case, it's the material without the ".001" so that's the one that the glass window should reference.
Determining which material is the outer glass material
That's all that is needed for working vehicle windows!
Shattermaps
You will notice that all vanilla vehicles have "shattermaps", which is an image that defines the border of the glass-breaking pattern. These aren't 100% necessary for working vehicle windows but will result in better-looking glass shatter patterns.
In Sollumz, shattermaps are represented as planes with a single texture. For example, adder.yft has an object called windscreen_shattermap which is parented to windscreen.col.
windscreen_shattermap
These are always low-res bitmap greyscale textures. Currently, Sollumz has no tools for creating shattermaps, so your best bet is to copy shattermaps from vanilla files and work off of those.
window_lf.col | Object Properties > Physics
window_lf | Materials
Setting left headlight light IDs
Notice now that if you unselect those faces, and select the headlight_l light ID, it will select those faces you just assigned.
Selecting light IDs
Sollumz Tools > Fragment > Vehicle Light IDs
Not all shaders are paintable. If you are trying to set up a paintable vehicle material and you are getting the "Not a paint shader" message, then you need to use a different shader. Typically you'd want to use a
To create a new vertex group, go to Data tab, click + in Vertex Groups, double click on the Group name and rename it to bonnet.
Process of creating a vertex group
Change Object Mode to Edit Mode.
Switch to Face Select.
Select all faces by pressing A or using the CTRL+A shortcut.
Go to Vertex Groups, click Assign button and exit Edit Mode.
Now all of the selected faces are properly set to the bonnet vertex group.
Hierarchy
Our new custom bonnet model has to be considered by Sollumz as a valid part, so we have to move the mesh by expanding Adder's armature then drag and drop bonnet's Drawable Model inside adder.mesh
You can delete the original bonnet, since is not needed anymore.
Armature
A replacement custom part has also to be linked to the armature, you can do this via Armature modifier.
Go to Modifiers tab.
Add an Armature modifier.
Select your vehicle's armature.
Level of Detail (LODs) Editing
The LODs for each Drawable Model can be edited in the Mesh Properties > Sollumz LODs panel. As mentioned before, there are 4 LOD levels: High, Medium, Low, and Very Low. You will also see the "Very High" LOD level, but that is only used for YFT vehicles (see Fragments > Vehicle Setup).
Mesh Properties > Sollmz LODs
Setting LOD Level
For each LOD level, you can select the mesh it will use. You can also select any LOD level from the list and it will swap out the mesh that the Drawable Model uses.
LODs can also be changed for the entire hierarchy at once in the Sollumz Tools > General > View panel.
Alternatively, press Shift + V to open a pie menu for quickly viewing different LOD levels.
Auto LOD Tool
Sollumz provides a basic LOD generation tool that uses the decimate modifier.
Select the Drawable Model and Navigate to Sollumz Tools > Drawable > LOD Tools.
From here you can select which LOD levels will get created. Normally you'd model the highest LOD first, convert to a Drawable Model, then use that high LOD mesh as the reference mesh. The reference mesh is not affected in this process. Each subsequent LOD level is decimated by Decimate Step.
Your results will vary depending on the mesh, as the decimate modifier does not work well for all topologies.
Extracting LODs into Separate Objects
You can also take advantage of Blender's instancing functionality and separate the LOD meshes into separate objects. This allows you to work on multiple LOD meshes at once.
Select the Drawable Model and Navigate to Sollumz Tools > Drawable > LOD Tools.
From here you can select which LODs to extract as well as what to parent the new objects to. You can either parent the objects to a collection or an empty object.
Notice how these new objects are using the same meshes as the ones defined in the Sollumz LODs panel.
Now, if you edit one of these object instances, the Drawable Model will be affected too.
Rigging
Drawables can be rigged using either vertex groups (skinning) or Child Of constraints. The top-level Drawable object must be an armature.
Skinning
Skinning Drawables works the same way you would normally do it in Blender. Simply create vertex groups where each group's name corresponds to a bone in the armature. Then, add an armature modifier and specify the Drawable as the armature object.
Drawable Model setup for skinning
Linking bones to Drawable Models
Many Drawables aren't rigged using weighted vertex groups. You can instead link an entire Drawable Model to a bone by using a Copy Transforms constraint.
Use the "Add Bone Constraint" operator with the Drawable Model Selected to add a Copy Transforms constraint with the properties setup for correct previewing.
By default, Blender sets the owner space and target space of the Copy Transforms constraint to "World". This can cause issues when objects are parented to both bones and other objects. Because of this, make sure to always use the Add Bone Constraint tool when creating Copy Transforms constraints.
Wheels
Upon importing, you will notice that the vehicle has only one wheel. This is because the game instances (re-uses) wheel_lf for all other wheels.
Wheel meshes do not have vertex groups but are instead rigged by a Child Of Constraint (as explained in Drawables > Rigging).
Wheel mesh rigging
Also, wheel meshes have the Is Wheel Mesh property ticked under Object Properties > Sollumz.
Object Properties > Sollumz
That's all that's needed for setting up wheel meshes!
Previewing the Other Wheels
In Sollumz Tools > Fragment > Create Fragment Objects is a tool called Generate Wheel Instances. This tool will create instances of the wheel, allowing you to better preview what it looks like in-game. This is useful when positioning the wheel bones.
Bone Physics
You will notice that each Fragment bone now has a Use Physics property.
Bone Properties > Sollumz > Fragment
Enabling this will reveal a Physics subpanel where various physics properties can be configured for that bone. The defaults work great for most use cases but feel free to tweak them to get the results you want.
If you're ever not sure what physics properties to set, import a similar model from the game and copy its physics properties.
Most importantly, enabling Use Physics is what causes the bone to react to physics. If this is unticked, any geometry associated with the bone will always remain static in-game. Usually, you'd have a bone for each separable part. That way, all parts of your Fragment will act independently of each other. See the page for an example (vehicles also have separable parts but the bone hierarchy is usually much more complex).
Strength is what determines how easily the part can be separated. If strength is -1, the part will not separate, but will still react to physics. This can be seen in props with hinging doors such as the container prop shown in .
Import Settings
There are two import settings that determine how Fragments import: Split By Group and Import with _hi.
Import Codewalker XML > Fragment
Split By Group
Split By Group will split the Drawable by vertex group. This is typically what you want when editing vehicles, as vehicles are skinned (i.e. rigged with weighted vertex groups), so there is typically only one Drawable Model containing many vertex groups as opposed to multiple Drawable Models each linked to a bone (see Drawables > Rigging > Skinning for more info on rigging Drawables).
Here is what adder.yft looks like when split by group.
Notice how each object represents a separable part of the vehicle. Since it's split by vertex group, each object will only have one vertex group.
While the Drawable is initially set up with one vertex group per object, it is perfectly fine for an object to contain multiple vertex groups.
Each object also has an armature modifier with the Fragment as the target object.
Import with _hi
Vehicle Fragments have an additional LOD level that is stored in a separate file named <fragment name>_hi.yft. For adder, it would be called adder_hi.yft. This is the highest level of detail and is what the player sees when close to the vehicle (i.e. when driving). It is very cumbersome to work on two separate YFTs so Sollumz stores this extra LOD level in the Very High LOD level. This enables you to work on both YFTs at once.
You should only use this LOD level when working with vehicles. When a mesh is provided for the Very High LOD level, Sollumz will export an extra _hi YFT that you don't need when working on props.
To import Very High LODs, first enable the Import with _hi option in the, and ensure the _hi YFT is in the same directory as the non-hi YFT. Then, select the non-hi YFT and import.
As with any Fragment/Drawable, if you want the textures to be automatically imported with the mesh, ensure you extract all textures to a folder with the same name as the Fragment in the same directory.
Drawables (.ydr)
Drawables are objects that hold mesh data, skeleton data, and shader data. It can be thought of as the game engine's mesh format. YDR files contain one Drawable and are typically used for static mapping but are also used for dynamic props in some cases. In cases where a prop consists of multiple breakable parts, Fragment (.yft) objects are used instead.
Drawables consist of multiple "Drawable Models" which hold the actual mesh data. Drawable Models are organized into High, Medium, Low, and Very Low detail levels. In every Drawable there is also a list of the shaders used and the parameters for each shader. Sometimes there are textures embedded in the file as well. Drawables can also contain skeleton data, but it is not required. This is usually only found in dynamic Drawables (objects affected by physics) such as props or in Drawables that are animated. Lastly, Drawables can contain lights, where each light contains light properties such as direction, falloff, color, etc.
Blender Hierarchy
In Blender, the hierarchy for Drawables consists of one parent Drawable object (either an empty or an armature depending on whether or not the Drawable has skeleton data) and Drawable Models (mesh objects).
Collisions (.ybn)
Collisions are well, collisions. whether that is for players, bullets, vehicles etc.
There is 3 main types of .ybns, the normal version(s), hi@ versions which is for weapon bullets, and ma@ collisions that are used to procedurally spawn grass and other things like garbage on the street.
A very common mistake users make is not applying a Flag Preset to the Bound GeometryBVH, resulting in the collision not working in game.
The Bound Composite is the top most part of the hierarchy, it doesnt control much on its own.
The Bound GeometryBVH controls things like which things collide with the Bound Poly Mesh / Boxes.
You can disable or enable certain flags here t o disable collision for specific object types.
The Bound Poly Mesh / Box is the collision model itself, what you are actually colliding with.
It is here where you can add or remove Collision materials and apply flags to said materials to control the physics of the collisions further.
Also, the "Procedural ID" setting is used mainly for ma@ collision ybns to spawn procedural objects like trash on the ground.
The "Room ID" Setting is used for setting up different rooms for MLOs.
Prop Setup
The example prop used in this article is prop_container_05a.yft
Fragment Hierarchy
Map Data (.ymap)
Map Data such as object locations, car generators, occlusions, and lod lights are stored in the .ymap file format.
Prerequisite Knowledge
Basic Blender skills
Prop Rigging
You'll also notice that each Drawable Model is rigged using a Child Of constraint instead of vertex groups.
This is the case for all props. Typically each Drawable Model for a prop corresponds to a particular separable part of the Fragment. Notice there is a Drawable Model for the latch, each door, and the container itself.
Skeleton Setup
This matches up with the bone hierarchy.
Each bone is parented to Prop_Container_05a and is thus affected by that bone. Every skeleton in the game engine always has one root bone that all the other bones are parented to.
If you attempt to add multiple top-level bones (bones with no parent) you will run into issues. Make sure there is a single "root" bone that all other bones are parented to!
Notice, too, that each bone has Use Physics enabled. This means that each of those parts will have physics in-game and will separate from each other.
In this case, the doors don't actually "separate" from the mesh, but fling open instead. This is because the Strength bone physics property is set to -1. When set to another value (i.e. 100) you'll notice that the parts will separate.
Collisions
As mentioned before, each bone with physics enabled must have an associated collision. However, there can be multiple collisions for a single bone. Notice for this prop, there is a single collision for the latch and the doors, but the container itself is comprised of 5 box collisions.
You will notice that a lot of vanilla collisions will use bound shapes wherever possible. This is typically preferred over using a bound mesh as it is much more performant. Keep collisions as simple as possible.
Each of these collision objects is linked to a bone via a Child Of Constraint.
Each collision also has its mass set in the Object Properties > Sollumz > Physics panel.
Quick Note on YTYP Flags
In order for physics to work for your prop in-game, make sure the YTYP archetype has the "Dynamic" flag enabled!
prop_container_05a.yft
prop_container_05a Blender hierarchy
Basic CodeWalker skills
What you will need
A Drawable positioned at the world location you want it to be at
Creating A new YMAP in blender
Open The 'N' Toolbar and navigate to Sollumz Tools -> Map Data
Then Click 'Create YMAP'
we can go ahead and rename our new ymap object, but ensure you rename it here as well.
Now, depending on what you will be using in this YMAP, we can return to the Map Data tab, and create the necessary groups.
with the ymap selected, click 'Entities'.
Next, parent your drawable positioned at the world position to the new 'Entities' object. (Shift + Drag)
Next, we can now export our YMAP. Select the YMAP object, and by either pressing V to open the Sollumz Pie Menu, or navigating to Sollumz Tools -> General -> 'Export CodeWalker XML', Export your YMAP Object.
Export Options
There is a handful of export options related to ymap in the export window, keep these in mind in case you are running into any issues.
Lastly, convert the .XML file back to the binary .YMAP by dragging the .XML into any RPF archive in CodeWalker RPF Explorer. It's Recommended you create a new RPF archive in your GTA 5 Root Directory.
Example Copy Transforms constraint for a Drawable Model
Sollumz Tools > Fragment > Create Fragment Objects
Example Drawable object
prop_container_05a.mesh
prop_container_05a.skel
With Strength set to 100 for both doors
prop_container_05a.col
Prop_CDoor_L.col constraints panel
Object Properties > Sollumz > Physics
Archetype Definition > Archetypes > crate > Flags
FAQ
Frequently Asked Questions
How do I import files to Blender with Sollumz?
Sollumz can only import XML files exported from CodeWalker. Make sure you install the latest version of CodeWalker as described here.
When I import a YDR/YFT/YDD the textures are not loaded
From the CodeWalker RPF Explorer, open the asset with the textures.
Click the save icon in the top right, then click "Save All Textures"
In Blender, press the V key, then click Find Missing Files and select the folder where you saved the textures.
Alternatively, export all textures into a folder with the same name as the file you are importing. For instance, if you wanted to import adder.yft with all of its textures, you would export all textures to a folder called adder in the same directory. Then, when you import into Sollumz, all textures will be automatically loaded from the adder folder.
My MLO shows up in CodeWalker but not in game.
Make sure you generate a "_manifest.ymf" file from the CodeWalker project window with your MLO, YMAP, and YTYP in it.
I'm getting an error when importing a file.
9 out of 10 times it is due to having an outdated Sollumz version. Try updating.
I'm getting the message No Sollumz objects in the scene to export! or No Sollumz objects selected for export!
Check if the "Limit to Selected" export option is ticked. If so, only the selected objects will export.
Make sure all of your objects have their sollum type set, otherwise, they will not be recognized by the add-on.
As a last resort, you can select the parent object and use Sollumz Tools > General > Debug > Fix Hierarchy
I'm getting the error TypeError: create_uvsphere: keyword "diameter" is invalid for this operator.
Update your Sollumz.
I'm getting the error KeyError: 'bpy_prop_collection[key]: key "Image Texture" not found'
One of your materials has a missing node connection between Color node and an Image Texture, which is 100% needed in order to export the model.
Check shading tab to find more.
I'm getting the error KeyError: 'bpy_prop_collection[key]: key "Principled BSDF" not found'
Only the Principled BSDF shader is supported during material conversion operations, anything else must be converted or recreated using Principled BSDF as base.
I created a collision (external or embedded) but it isn't working.
Remember to apply General (default) flags to your Bound GeometryBVH object from the Sollumz Tools > Collision Tools > Flag Presets menu.
I'm having issues importing the file into OpenIV
Since this plugin was designed around CodeWalker's XML file formats, OpenIV is not explicitly supported. You may experience issues going from Sollumz > CodeWalker > OpenIV. It's highly recommended that you just use CodeWalker.
Why the vertices amount is doubled or tripled after exporting my model?
Vertices in Blender and in game meshes have different meaning. For Blender, it is basically just a position. For the game, it is position + attributes (normals, colors, UVs, etc). Closer to what Blender calls "Face Corners".
Don't think Blender shows the number of face corners anywhere without python, but after triangulization, it is basically number of faces*3.
On export, Sollumz removes duplicate face corners when it can, when position and all its attributes are the same. So the final vertex count in the game mesh is somewhere between number of vertices and number of face corners.
Anyways, number of faces is more representative of the model quality/performance, so just use that, not vertices.
My model is invisible after importing to CodeWalker
Check the UV Maps and Color Attribute names, they have to follow the Sollumz naming convention. Sollumz is warning a user when names don't match.
Creating Static Meshes
Game meshes are stored in the Drawable (.ydr) file format. Creating Drawables in Sollumz is very simple. This tutorial will walk you through step-by-step.
Know how to create YMAPs to place objects in CodeWalker ()
Know how to either stream assets in a FiveM server or load mods into the base-game
What you will need
A UV-mapped 3D mesh of your choice
Textures for the mesh
You can also follow along with the tutorial by using the assets below:
Converting to a Drawable
The first thing to do is convert your object(s) to a Drawable. Select all the objects and click Convert to Drawable in Sollumz Tools > Drawable > Create Drawable Objects.
You'll notice that an empty object gets created called "Drawable" and the objects that were selected are now Drawable models.
If you navigate to Mesh Properties > Sollumz LODs you'll also notice that the active mesh is automatically assigned to the "High" LOD level. This panel is where you can assign other meshes as LODs. More info on that . For the sake of this tutorial, we will only be setting the High LOD level.
Adding Materials
Next, we need to add materials to the Drawable Models. With one of the Drawable Models selected, open the Sollumz Tools > Drawable > Shader Tools panel. For this tutorial, I will use the "NORMAL" shader which allows us to specify a base color and a normal map. Search for the "NORMAL" shader and click Create Shader Material.
With the newly added material selected, head to the shading tab and assign your textures.
Repeat the process for any other Drawable Models. In my case, I am just going to use the same material for the "crate_top" Drawable Model.
Embedding Textures
Lastly, we need to set the textures as embedded. This will embed the textures into the YDR file, so we don't have to create a texture dictionary file (.ytd). With both objects selected, navigate to Sollumz Tools > Drawable > Shader Tools and click Set all Materials Embedded.
Exporting
Before exporting I'm going to rename my Drawable to something more descriptive like "crate". Once you're happy with everything, export the Drawable by clicking File > Export > Codewalker XML. I am going to also enable Export with ytyp. This will automatically generate a YTYP with the Drawable we created already defined.
You can also import/export via the Sollumz pie menu by pressing V and choosing "Export CodeWalker XML"
Your Drawable is now ready to be loaded into the game!
Getting Files Ready to Stream
Convert the ydr.xml and ytyp.xml using CodeWalker.
Open the converted files in a CodeWalker project.
Add a YMAP to the project and add the newly created Drawable as an entity.
Position the entity to your liking, then export the YMAP.
Don't forget to generate _manifest.ymf for your project!
Now, load your YDR, YTYP, YMAP, and _manifest.ymf into either an RPF or the stream folder of your FiveM resource.
Test In-Game
That's it! Load into the game and check out your creation!
Note that your character will not collide with the Drawable as we have not created collisions for it. See to learn how to create collisions.
Archetype Definition (.ytyp)
Archetype definitions (.ytyp) is basically the configuration file to define properties of objects.
inside the .ytyp you will find multiple Archetypes, each archetype is for one object, there is 3 types of archetypes, Base, Time and MLO. Base is for .ydr, .ydd, .yft objects, Time archetypes are for time based objects such as window emissives that only show up at night. MLO archetypes are for MLOs (.ybn) objects.
Settings
Description
Flashiness Values
All light types have a Flashiness parameter, here you can set a value to make the light flicker or flash in a specific predefined way.
The default value is set to 0, or constantly visible.
Flashiness Name
Description
Drawable Dictionary
Physics Dictionary
Blank or same as Archetype Name if embedded
HD Texture Distance
Distance at what the HD Textures (+hi.ytd, +hidr.ytd) load
LOD Distance
Distance at which the object unloads
Asset Type
Assetless, Drawable Dictionary (.YDD), Drawable (.YDR), Fragment (.YFT), Unintialized
Asset Name
Same as Archetype Name
Linked Object
Object in blender scene linked to the archetype
Type
Archetype type (Base, Time, MLO)
Name
Archetype Name
Special Attribute
0-13 (mainly used for doors)
Texture Dictionary
Texture dictionary (.ytd)
Clip Dictionary
Linked YCD Animation (.YCD)
Takes the lights Extent value as a factor for the random value
Random Override If Wet (2)
Once Per Second (3)
Light flashes 1 time per second
Twice Per Second (4)
Light flashes 2 times per second
Five Per Second (5)
Light flashes 5 times per second
Random Flashiness (6)
Truely random flashiness
Off (7)
Unused (8)
An unused value, has no effect
Alarm (9)
Flashes like an alarm, possibly tied to audio alarms?
On When Raining (10)
Flashing begins when weather is set to rain
Cycle 1 (11)
A predefined flashing cycle
Cycle 2 (12)
A predefined flashing cycle
Cycle 3 (13)
A predefined flashing cycle
Disco (14)
Flashes like a disco ball
Candle (15)
More so a flicker, like a candle
Plane (16)
Likely used for plane lights, the navigation ones
Fire (17)
Similar to the candle, but flickers faster
Threshold (18)
Electric (19)
Flashes like an electric ceiling light
Strobe (20)
Flickers like a strobe light, very fast and intense
Disable Green Vertex Colours (used alot for props)
Disable Blue Vertex Colour Channel
Disable Blue Vertex Colours
Disable Alpha Vertex Colour Channel
Disable Alpha Vertex Colours
Features
Key
🟩 Fully implemented
🟧 Partially implemented
🟥 Not implemented
Sollumz cannot import binary formats directly. You must convert them to XML first using CodeWalker!
Since this plugin was designed around CodeWalker's XML file formats, OpenIV is not explicitly supported. You may experience issues going from Sollumz > CodeWalker > OpenIV. It's highly recommended that you just use CodeWalker.
File Formats
Asset Type
File Extension
Import
Export
Specific Features
Drawable (.ydr)
Feature
Support
Drawable Dictionary (.ydd)
Feature
Support
Static Collision (.ybn)
Feature
Support
Fragment (.yft)
Feature
Support
Unsupported Ped YFTs
The following is a list of unsupported ped YFTs. These YFTs contain unknown ragdoll physics data that is not handled by Sollumz. Currently, it is not possible to create completely custom player skeletons.
Often the easiest way to get into ped editing is to start simple: Let's edit an existing model from GTA for a freemode ped, so we can learn the basics.
Peds: Streamed vs Non-Streamed
One thing you should know is that there are generally two different types of peds for GTA: "streamed" and "non-streamed". For a basic explanation, just know that peds use YDD (drawable dictionary) files for their models instead of YDR. For streamed peds, all of their 'parts' (ie shirt, shoes, head, etc) are separate YDDs. For non-streamed peds, all of those parts are put together into 1 single YDD. Streamed peds are generally easier for beginners to start with editing, because you can edit and export 1 piece at a time so if you mess up, you know it's just that 1 part that isn't working.
MP Freemode both male and female are both "streamed peds". This means that all of their parts are separate. If you wanted to see a 'base body' in blender to work with, you'll need to import several different YDDs: a HEAD, an UPPER, a LOWR, and a FEET.
Ped Skeletons
One other note before we start: All peds, whether streamed or non-streamed, have a SEPARATE FILE called a YFT for their skeleton. For whatever ped you are editing with Sollumz, you will need their YFT file so that Sollumz knows what their bones are.
Importing the Files
Export the skeleton YFT XML
Let's start getting ready to get into Blender! The first step is to export the male and female Freemode ped skeletons (YFTs) to use when importing and exporting components that are rigged to the ped. These are located at x64v.rpf\models\cdimages\streamedpeds_mp.rpf and can be saved separately to be used with any freemode ped clothing or accessories you edit in the future.
an image of codewalker showing the folder where mp m/f yfts can be found
If you haven't already created a folder somewhere on your computer to work on this project, do that now. Then, right-click the mp_m_freemode_01.yft and press Export XML.... Make sure you're keeping track of where you exported the XML to. It will need to be in the same folder as the YDD when we import into Sollumz.
Exporting the YDD
Now we'll export the model we actually want to edit, as well as a texture for it. If you didn't already know of it, tobii.space is a good visual reference for most of the freemode components. It has most DLC clothing, although it is missing some of the newer updates. Today we already know what clothing piece we're using, so let's head back over to Codewalker RPF and grab the file.
Open up CW RPF and type mp_m_freemode into the searchbar
If you click "Name" at the top to sort by name, you'll then see a list of all of the MP Male folders. You'll notice there are multiple folders for every DLC. This is the original DLC folder, and then patchday folders that hotfixed any issues R* had with various pieces of clothing.
The 🟥 outline is all of the base MP male DLC folders
The 🟧 outline highlights all of the DLC names. Notice the original DLC and all of the patchday hotfixes.
The 🟩 outlines the original base game DLC folder.
Right now we aren't going to worry about any hotfixed files, so just click into the original DLC folder. If you are ever editing GTA assets, though, you should always look through the patchday folders for whatever component you're trying to edit so that you can work off of the most up-to-date version.
Now that we're inside the base folder, you'll see a long list of all the base game components and their YTD textures. Make sure you're sorted by 'Name' so that everything is alphabetical, and then scroll down until you see the JBIBs.
For the purposes of our tutorial, let's export jbib_007_u.
Right-click on jbib_007_u.ydd
Select export XML...
Export location: Make sure you export to the same folder you exported the YFT earlier.
Now let's quickly visit the folder you've just exported the file to. In the folder, you should have a couple of things. Firstly the mp_m_freemode_01.yft.xml, then .ydd.xml of our jbib & there should also be a folder named jbib_007_u.
Whenever you are exporting a model that has embedded textures, Codewalker RPF will create a folder named after the model you exported to XML with all of the embedded textures placed inside of it.
Go ahead and click into the folder and take a peek at the embedded textures! You should see two: a normal texture and a specular texture. To quickly explain these: A normal helps emphasize clothing details like wrinkles & a specular helps display the glossiness or matte of your clothing.
Most freemode clothing components have an embedded specular texture and normal texture. When you go to make your own models later on, you'll need to learn how to create these yourself. For now, they have already been made for us. So get familiar with them while you can!
Exporting a texture for our model
You might have already noticed, but there's one texture we don't have yet: A diffuse texture. The diffuse texture for clothing YDDs stays un-embedded from the model and in a separate file called a YTD (texture dictionary), and you can have up to 26 of them (A to Z) for any single YDD. We don't need the texture for our editing today, but it's nice to have a visual reference, so let's grab one now.
In Codewalker RPF right below where you found the YDD we exported, should be the YTD files. Scroll down until you see jbib_diff_007_a_uni.ytd and export it to XML. It will create a sub-folder named jbib_diff_007_a_uni with the texture inside of it.
Ready for Blender
Do a final check before opening blender. Your folder should look like this:
Your .yft.xml is in the same folder on the same level as the .ydd.xml . That's the import part!
If you would like, you can copy/paste the diffuse texture from the jbib_diff_007_a_uni to the "embedded textures" folder jbib_007_u . This will allow Sollumz/Blender to automatically find the texture when you go to import. Otherwise, you can link it manually later on.
Importing to Sollumz
With Blender open:
click File
Import ► Codewalker XML
Navigate to the folder you exported the XMLs
Click jbib_007_u.ydd.xml and from the side-menu options make sure you select 'Import External Skeleton'
You should now be looking at something like this:
Let's make sure we imported correctly. In scene collection:
Expand jbib_007_u and then jbib_007_u.001 and click on SKEL_ROOT
In the properties window, click on the Object Data Properties tab
Expand Vertex Groups (if its not already) and make sure they are all named.
If you see named bones like SKEL_L_Hand etc then you're good to go! If you see something like UNK.001 you did not follow the correct steps for exporting the YFT portion of this tutorial. Go back up, re-read, and try again.
Preparing the model
Viewport adjustments
With everything imported properly, let's get ready to actually edit! First things first, we probably want to change our viewport to actually see what we're working with.
Personally, I like to change the 'color' to Texture and 'lighting' to MatCap, but you can play around in this menu and see what works for you.
Linking diffuse texture
Once we have that set, your shirt might look like this:
If you left the diffuse texture in it's own jbib_diff_007_a_uni sub-folder, you'll see our jacket is pink. That's fine! We can just link up our diffuse texture now.
Top-left, go to File ► External Data ► Find Missing Files
Navigate to your project folder and select the jbib_diff_007_a_uni sub-folder where you will see the jbib_diff_007_a_uni.dds. Then press 'find missing files'.
It's good to know this method, as you will use it in other parts of Sollumz modding as well for things like props and MLOs. You might see a yellow warning popup at the bottom of your blender that says it cannot find 'givemechecker.dds' . This is fine to ignore.
you can ignore this warning
Head back to the 3D viewport (instead of shader editor) and we can see our jacket now has the diffuse texture:
Great! Just one more thing to do before we actually edit. When importing into blender our vertices have unmerged and we've lost our sharp edges. We want all of that back so that we can have the most accurate view of what we're working with and what it will look like in-game.
Merge vertices/Sharp Edges
To fix things, let's do the following:
Select SKEL_ROOT in scene collection
In 3D Viewport, Tab into Edit Mode
Select everything (Default: A key)
Merge ► By Distance (Default: M key)
In the bottom left for the 'Merge by Distance' window, expand it and tick on Sharp Edges
Clothing has 3 LODs (level of detail): high, medium, and low. We also need to do the same thing for our medium and low LODs.
The easiest way to switch between LODs quickly is to press SHIFT + V (make sure you are no longer in edit mode) to bring up the Sollumz Object Visibility wheel.
The three options on the right-side of the wheel are the ones you'll be using for clothing YDDs. Switch to Medium, repeat the same steps above. Then switch to Low, and do it once more.
Editing
We're ready to edit! Switch back to High LOD with SHIFT + V and tab into edit mode. You can make any changes you want here. I'll delete the sleeves for the purpose of this tutorial.
Now that I've removed the sleeves, I have 2 things to resolve:
I need to fill in the holes where the sleeves used to be
I need to create new sharp edges to tidy up the model
The reason we want to fill in the holes is because GTA uses back-face culling. What this means is that the faces on the model do not have both a viewable "front" and "back". Instead, the front-facing side is visible and the back is invisible. We can see this in action in blender by going back up to the viewport shading options and turning it on.
You can see the "back side" of the model is invisible now. We need to fill in those holes. There are two ways to fix this.
First, go back into edit mode and select all of the vertices around the edge.
Then you have two options. You can either press F to fill in the hole, or you can extrude the hole and then merge the vertices from the extrusion. For this tutorial, I'll be doing the second method.
Select the vertices around the edge
Extrude (default E key)
With your mouse, move the new points slightly inward
Scale the vertices together (default S key) then merge them (M Key) ► at center
You might notice that our new geometry looks a little weird. Almost as if its shiny in places.
an example of bad normals
What's happening here is we have bad normals. To be clear, there is a difference between the embedded "normal texture" (sometimes also called a bump map) and geometry normals. If you'd like to learn more about normals, there are plenty of youtube videos that can help.
For now I'm just going to reset them to clear up this issue! With my geometry selected go to Mesh ► Normals ► Reset Vectors
Once that's done, everything should be looking much betterr.
Since this is the edge of the shirt, I'd also like to set some sharp edges along the same loop we just filled in. Sharp edges add a more "crisp" line in geometry that is clearly visible in-game. When you use them properly, they can add a little extra emphasis to your model quality. There's no rule of when or when not to use sharp edges, it's up to you to follow the lines of clothing and determine where they would make sense.
For now I'll go to edge select & select the loop I filled in, then right-click and press "mark sharp"
Now do the same thing with the other side.
With that done comes the boring part: Repeating the same process with the medium and low LODs! With custom models, you would have all of this already finished before you create your LODs but when editing existing clothing, you need to either edit everything the same or create new LODs after you've edited.
For this tutorial, you should delete the sleeves on the med/low LODs so that they look visually similar, but it's up to you whether you want to fill in the sleeve holes like we did here for High LOD. Chances are that from a distance people won't be able to see that small detail anyway.
Exporting
With all of the LODs edited, we're now ready to export!
In the outliner window, right-click jbib_007_u and select hierarchy
Then go top-left to File ► Export ► Codewalker XML
It's best to create an 'export' folder so that you are not overwriting the original. That way if you mess up, you don't have to go grab the ydd xml all over again.
navigate into Export folder
Export
The window will close and at the bottom of your blender you should see a message like "exported in 0.12 seconds".
Now in our export folder, we should have our new .ydd.xml and a copy of the embedded textures folder with our normal/specular textures inside.
You can now head back over to Codewalker RPF and import the XML to turn it back into a YDD & preview it!
Our model is finished! Now you can replace the existing one or create an addon with the same textures and test in-game. In-game you might see it clips with the underarms as you move around. That's due to something called "weight painting". More about that to come in future tutorials!
Archetype Extensions
Used to add things like particles, ped spawns, ladders, and light shafts to be attached to the entity
CExtensionDefExpression
Used for:
Setting
Description
Name
Expression Dictionary Name
Expression Name
Creature Metadata Name
Initialize on Collision
CExtensionProcObject
Used For: Attaching / Spreading procedural objects
Setting
Description
Name
Extension Name
Radius Inner
Inside radius of a circle around the extension
Radius Outer
outside radius of a circle around the extension
CExtensionDefWindDisturbance
Used for:
Setting
Description
Name
Extension Name
Offset Rotation XYZ
Extension rotation
Disturbance Type
CExtensionDefSpawnPointOverride
Used For: Spawning / overriding ped spawns
Setting
Description
Name
Extension Name
Scenario Type
Scenario type from .ymt scenarios
iTime Start Override
When the override should start
CExtensionDefSpawnPoint
Used For: Attaching peds / ped scenarios to objects
Setting
Description
Name
Extension Name
Offset Rotation XYZ
Extension rotation
Spawn Type
CExtensionDefLightShaft
Used For: Light Rays / God Rays
Setting
Description
Density Type
How dense the light shaft should be
Volume Type
Shape of the shaft
Scale By Sun Intensity
Use in game sun intensity to effect brightness
Offset Position XYZ
Extension offset relative to entity origin
Spacing
Distance between procedural objects
Min Scale
Lowest possible scale value
Max Scale
Highest possible scale value
Min Scale Z
Lowest possible scale value on the Z axis
Max Scale Z
Highest possible scale value on the Z axis
Min Z Offset
lowest possible offset on the Z Axis
Max Z Offset
Highest possible offset on the Z Axis
Object Hash
procedural object to use
Flags
Offset Position XYZ
Extension offset relative to entity origin
Bone Tag
Linked bone's Bone Tag(Optional?)
Size XYZW
Flags
Offset Position XYZ
Extension offset relative to entity origin
iTime End Override
When the override should end
Group
Ped Group
Model Set
Ped Model Set
Radius
Radius of the Spawn Point Override
Time Till ped Leaves
Time until ped stops task (in minutes?)
Available in MP/SP
Whether it is SP only or MP
Scenario Flags
Offset Position XYZ
Extension offset relative to entity origin
Ped Type
Group
Ped Group
Interior
Interior Name (if inside one)
Required Map
Probability
Chance for the scenario to spawn
Time Till Ped Leaves
Time until ped stops task (in minutes?)
Radius
Radius of the Spawn Point
Start
Time the scenario starts
End
Time the scenario ends
High Priority
Prioritizes spawning of scenario
Extended Range
Extend range at which the scenario can spawn relative to the player
Short Range
Decrease range at which the scenario can spawn relative to the player
Available in MP/SP
Whether it is SP only or MP
Scenario Flags
Offset Position XYZ
Extension offset relative to entity origin
Direction Amount
Length
Length of the Light Shaft
Color
Color of the Light Shaft
Intensity
Intensity of the Light Shaft
Flashiness
Flags for how fast and if the Light Shaft should flash / flicker
Flags
Only Possible flags are 35, 99, 83, 115, 51
Fade In Time Start
When the Light Shaft should begin to appear
Fade in time End
when the Light Shaft is fully visible
Fade Out Time Start
When the Light Shaft should begin fading away
Fade Out Time End
when the Light Shaft Shouldnt be visible
Fade Distance Start
Distance at which the Light Shaft begins Fading
Fade Distance End
Distance at which the Light Shaft is fully Faded
Softness
Corner A XYZ
Top Left Corner Coords
Corner B XYZ
Top Right Corner Coords
Corner C XYZ
Bottom Right Corner Coords
Corner D XYZ
Bottom Left Corner Coords
Offset Position XYZ
Extension offset relative to entity origin
Vehicle Shaders
In this page you can find all vehicle shaders used on vehicles and their technical usage
Vehicle Paint shaders
vehicle_paint1
Typical vehicle paint shader, used on most vehicles in GTA V.
UV Maps
Texture
vehicle_paint1_enveff
Basic vehicle paint shader with additional feature of applying snow.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
vehicle_paint2
A very similar shader to vehicle_paint1, with dirt mapping moved to first UV map.
vehicle_paint2_enveff
A copy of vehicle_paint2 with additional feature of applying snow.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
vehicle_paint3
Used for liveries on a car.
vehicle_paint3_enveff
A copy of vehicle_paint3 with additional feature of applying snow.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
vehicle_paint3_lvr
Variant of vehicle_paint3 with tileable livery via second UV Map.
vehicle_paint4
Used for metal worn effect and/or livery on a car.
vehicle_paint4_emissive
Very same vehicle_paint4 shader with support of emissives.
vehicle_paint4_enveff
vehicle_paint4 shader, used for metal worn effect and liveries on a car.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
vehicle_paint5_enveff
Used for metal worn effect and liveries on a car.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
vehicle_paint6
Used for metal bolts on planes, applying liveries, metal worn effect.
vehicle_paint7
Used for metal worn effect and liveries on a car.
vehicle_paint7_enveff
Used for metal worn effect and liveries on a car.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
vehicle_paint8
Used for metal worn effect and liveries on a car.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
vehicle_paint9
Used for metal worn effect and liveries on a car.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
Vehicle Light shaders
vehicle_lightsmeissive
Allows the light to be lit.
Lights ID values for different type of vehicle lights, available in Fragments / Vehicle Light IDs
Vehicle Glass shaders
vehicle_vehglass
Shader specifically tailored to work with windows and other glasses.
vehicle_vehglass_inner
Identical shader to vehicle_vehglass, used for inner side of windows/glasses, with limited dirt intensity.
Vehicle Interior shaders
vehicle_interior
Simple interior shader with normal map support.
vehicle_interior2
Simple interior shader without normal map support.
Simple interior shader without normal map support.
UV Maps
Texture
Vehicle Mesh shaders
vehicle_mesh
Extensively used for metallic vehicle parts, like exhausts, engines, chassis parts.
vehicle_mesh_enveff
Extensively used for metallic vehicle parts, like exhausts, engines, chassis parts with additional feature of applying snow.
Vertex Alpha: visibility of snow samplers (black - non applied, white - applied)
Vehicle Tire shaders
vehicle_tire
A shader for wheels, cannot be used on any other vehicle parts.
vehicle_tire_emissive
vehicle_tire shader with emissive support
Vehicle Emissive shaders
vehicle_dash_emissive
Shader dedicated for emissive dials being lit up at night.
UV Maps
Texture
vehicle_dash_emissive_opaque
Shader dedicated for emissive dials being lit up at night for opaque textures.
UV Maps
Texture
Vehicle License plate shaders
vehicle_licenseplate
Shader responsible for rendering vehicle license plates with changeable text.
Vehicle Miscellaneous shaders
vehicle_badges
Shader for vehicle badges.
vehicle_decal
Shader created for adding additional decals, scratches on the vehicle.
UV Maps
Texture
vehicle_decal2
Derivated from vehicle_decal, with dirt support.
vehicle_detail2
Used to add a leather detail effect to seats and dashboards.
vehicle_shuts
Shader utilized for inner sides of engine bay, doors, bonnet and boot.
vehicle_track/vehicle_track2
Shader for UV animation, hardcoded usage, in modded vehicles works only on the left side.
Snow sampler 1
UV Maps
Texture
UVMap 0
Diffuse / Specular
UVMap 1
Dirt
Example of vehicle_paint1_enveff from asea2.yft
UV Maps
Texture
UVMap 0
Diffuse / Specular / Dirt
Example of vehicle_paint2 from burrito3.yft
Snow sampler 1
UV Maps
Texture
UVMap 0
Diffuse / Specular / Dirt
Example of converted material for vehicle_paint2_enveff
Specular
UV Maps
Texture
UVMap 0
Diffuse / Dirt
UVMap 1
Second diffuse / Specular
Example of vehicle_paint3 from buffalo3.yft
Snow sampler 1
UV Maps
Texture
UVMap 0
Diffuse / Dirt / Enveff tileable UV (edited in envEffTexTileUV)
UVMap 1
Second diffuse / Specular
Example of vehicle_paint3_enveff from stunt.yft
Specular
UV Maps
Texture
UVMap 0
Diffuse / Dirt
UVMap 1
Livery / Specular
Example of vehicle_paint3_lvr from tornado5.yft
Specular
UV Maps
Texture
UVMap 0
Dirt / Diffuse tileable UV (edited in DiffuseTexTileUV)
UVMap 1
Tileable specular (edited in specTexTileUV)
Example of vehicle_paint4 from banshee.yft
Second diffuse
UV Maps
Texture
UVMap 0
Dirt / Diffuse tileable UV (edited in DiffuseTexTileUV)
UVMap 1
Tileable specular (edited in specTexTileUV)
Example of vehicle_paint4_emissive from blimp3.yft
Snow sampler 1
UV Maps
Texture
UVMap 0
Dirt / Diffuse tileable UV (edited in DiffuseTexTileUV)
UVMap 1
Tileable specular (edited in specTexTileUV)
Example of vehicle_paint4_enveff from caddy3.yft
Snow sampler 1
UV Maps
Texture
UVMap 0
Dirt / Diffuse tileable UV (edited in DiffuseTexTileUV)
UVMap 1
Livery
Example of vehicle_paint5_enveff from camper.yft
UV Maps
Texture
UVMap 0
Dirt / Diffuse tileable UV (edited in DiffuseTexTileUV)
UVMap 1
Livery
Example of vehicle_paint6 from utillitruck.yft
Specular
UV Maps
Texture
UVMap 0
Dirt / Specular / Diffuse tileable UV (edited in DiffuseTexTileUV)
UVMap 1
Livery
Example of vehicle_paint7 from phantom2.yft
Snow sampler 1
UV Maps
Texture
UVMap 0
Dirt / Diffuse tileable UV (edited in DiffuseTexTileUV)
UVMap 1
Livery
Example of vehicle_paint7_enveff from wastelander.yft
Snow sampler 1
UV Maps
Texture
UVMap 0
Dirt normal map
UVMap 1
Diffuse tileable UV (edited in DiffuseTexTileUV) / Snow sampler tileable UV (edited in envEffTexTileUV)/ Livery / Specular
UVMap 2
Dirt
Example of vehicle_paint8 from brutus.yft
Snow sampler 1
UV Maps
Texture
UVMap 0
Dirt normal map
UVMap 1
Livery
UVMap 2
Dirt / Diffuse tileable UV (edited in DiffuseTexTileUV) / Snow sampler tileable UV (edited in envEffTexTileUV) / Specular
Example of vehicle_paint9 from conada.yft
UV Maps
Texture
UVMap 0
Diffuse / Specular
UVMap 1
Dirt
Example of vehicle_lightsemissive from asea2.yft
UV Maps
Texture
UVMap 0
Diffuse / Specular
UVMap 1
Dirt
Example of vehicle_vehglass from buffalo2.yft
UV Maps
Texture
UVMap 0
Diffuse / Specular
UVMap 1
Dirt
Example of vehicle_vehglass_inner from buffalo2.yft
UV Maps
Texture
UVMap 0
Diffuse / Normal map / Specular
Example of vehicle_interior from vigero.yft
UVMap 0
Diffuse / Specular
Example of vehicle_interior2 from burrito3.yft
UV Maps
Texture
UVMap 0
Diffuse / Normal map / Specular
UVMap 1
Dirt
Example of vehicle_mesh from vigero.yft
UV Maps
Texture
UVMap 0
Diffuse / Dirt / Normal map / Specular
Example of vehicle_tire from vigero.yft
Specular
UV Maps
Texture
UVMap 0
Diffuse / Dirt / Normal map / Specular
Example of vehicle_tire_emissive from tezeractyft
UVMap 0
Diffuse / Specular
Example of vehicle_dash_emissive from vigero.yft
UVMap 0
Diffuse / Specular
Example of converted material for vehicle_dash_emissive_opaque
UV Maps
Texture
UVMap 0
Plate background, Place background bump, Font, Font bump
